Removing and installing retainer (rear)
Removing and installing retainer (rear)
  Note
Removal and installation are identical on the left and right.

Removing
–  Remove trim cover → Chapter.

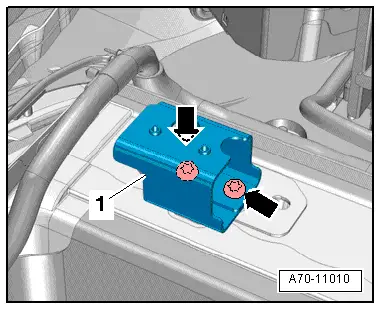

–  Unscrew bolts -arrows- and detach retainer (rear) -1-.
Installing
Install in reverse order of removal.
Tightening torque → Chapter
  A70-11010
