A4 Mk3

Removing and installing bracket for warning triangle
Removing and installing bracket for warning triangle

Removing
–  Press release mechanism and remove warning triangle from bracket.

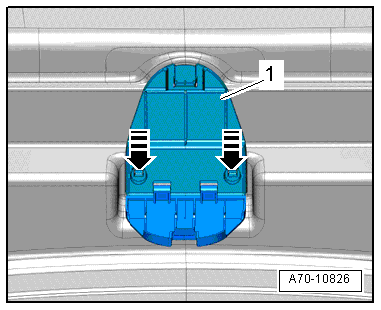

–  Release retaining tabs -arrows- with a screwdriver and detach bracket -1- for warning triangle.
Installing
Installation is carried out in the reverse order; note the following:
–  Press on bracket for warning triangle until it engages audibly.
  A70-10826
