| Equipment version with side airbag (rear): Remove side airbag (rear) → Chapter. |
| –
| Equipment version with fixed rear seat backrest: Remove fixed rear seat backrest → Chapter. |
| –
| Remove luggage compartment floor covering → Chapter. |
| –

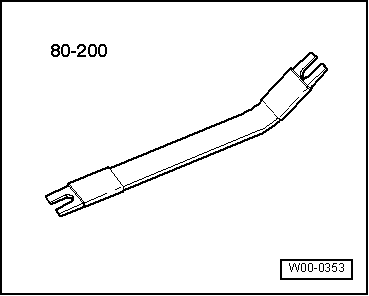

| Remove fasteners -1- using removal lever -80 - 200-. |
| –
| Lever luggage compartment side trim -2- off body -arrows- using removal lever -80 - 200-. |
| –
| Disengage luggage compartment side trim at hinges and detach. |
| Installation is carried out in the reverse order; note the following: |
Note | t
| If there are still trim clips in the body mounting points, they must be removed and inserted in the trim when installing. |
| t
| Check the clips for damage or deformation and renew them if necessary. |
| –
| Press on luggage compartment side trim until it engages audibly. |
| –
| Fold lip of rear lid seal over luggage compartment side trim. |
|
|
|
