A4 Mk3

Exploded view of luggage compartment side trim

Exploded view of luggage compartment side trim
1 - Clip
q   3x
q   Insert in trim
q   Renew if damaged or deformed
2 - Fasteners
q   2x
3 - Bolt
q   4x
q   6 Nm
4 - Fastening ring
q   2x
q   Removing and installing → Chapter
5 - Luggage compartment side trim
q   Removing and installing → Chapter

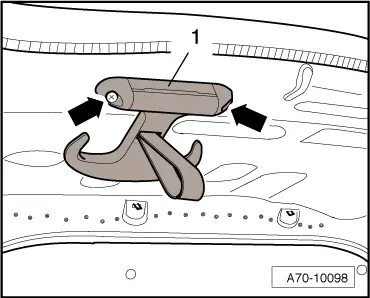

Tightening torque for retaining hook to body
–  Equipment version with retaining hook: Tighten bolts -arrows- to 1.5 Nm.
  A70-10098
