| Remove luggage compartment floor covering → Chapter. |
| –
| Pull off lip of rear lid seal in area of rear cross panel trim. |
| –

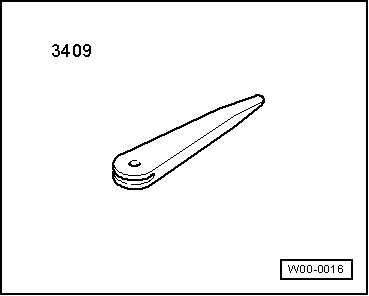

| Working vertically upwards, unclip rear cross panel trim -2- using removal wedge -3409--arrows-. |
| Installation is carried out in the reverse order; note the following: |
Note | t
| If there are still trim clips in the body mounting points, they must be removed and inserted in the trim when installing. |
| t
| Check the clips for damage or deformation and renew them if necessary. |
| –
| Insert retaining tabs on rear cross panel trim (left and right) in recesses of luggage compartment side trim -1-. |
| –
| Insert rear cross panel trim so that tabs engage in pins -3- (left and right). |
| –
| Press on rear cross panel trim until it engages audibly and fold lip of rear lid seal over rear cross panel trim. |
|
|
|
