A4 Mk3

Exploded view of rear shelf

Exploded view of rear shelf
1 - Clip
q   4x
q   Insert in rear shelf
q   Renew if damaged or deformed
2 - Rear shelf
Equipment versions:
t  Without sun blind
t  With sun blind
q   Engaged in rear window frame
q   Removing and installing → Chapter
3 - Cap
q   Depending on equipment version
q   Removing and installing → Chapter
4 - Bolt
q   4x
q   2 Nm
5 - Loudspeaker trim
q   Depending on equipment version
q   Removing and installing → Chapter
6 - Loudspeaker
q   Depending on equipment version
q   Removing and installing → Rep. gr.91
7 - Bolt
q   4x
q   Tightening torque → Rep. gr.91

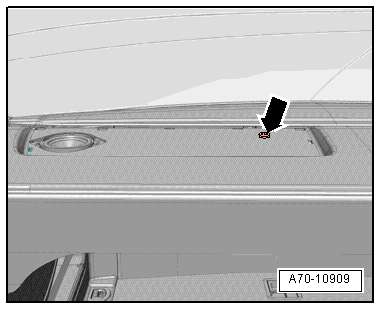

Tightening torque: rear shelf to spacer for rear shelf
–  Equipment version with additional attachment: Tighten bolt -arrow- to 2 Nm.
  A70-10909

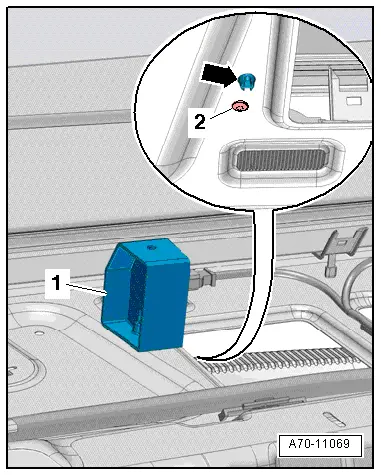

Tightening torque: spacer for rear shelf to body
–  Equipment version with additional attachment: Tighten bolt -2- for spacer -1- to 2 Nm.
l  Locating pin -arrow- must engage in hole in body.
  A70-11069
