A4 Mk3

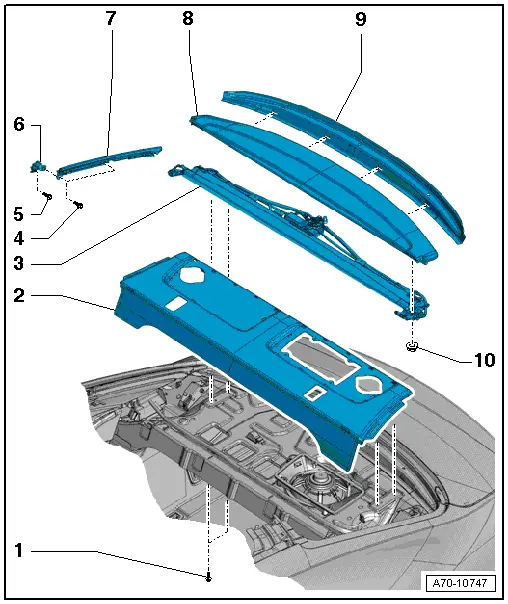

Exploded view of sun blind |
1 - | Bolt |
q | 4x |
q | 2 Nm |
2 - | Front section of rear shelf |
q | Depending on equipment version |
q | Removing and installing → Chapter |
3 - | Sun blind |
q | Depending on equipment version |
q | Removing and installing → Chapter |
4 - | Bolt |
q | 4x |
q | 2.3 Nm |
5 - | Bolt |
q | 2x |
q | 2.3 Nm |
6 - | Bracket |
q | For guide strip |
7 - | Guide strip |
q | Removing and installing → Chapter „Removing and installing sun blind“ |
8 - | Rear section of rear shelf |
q | Depending on equipment version |
q | Engaged in rear window frame |
q | Removing and installing → Chapter „Removing and installing sun blind“ |
9 - | Trim |
q | For rear section of rear shelf |
10 - | Nut |
q | 5x |
q | 3 Nm |
