Removing and installing B-pillar trim (bottom)
Removing and installing B-pillar trim (bottom)
  Note
Removal and installation are identical on the left and right.

Removing
–  Remove B-pillar trim (top) → Chapter.

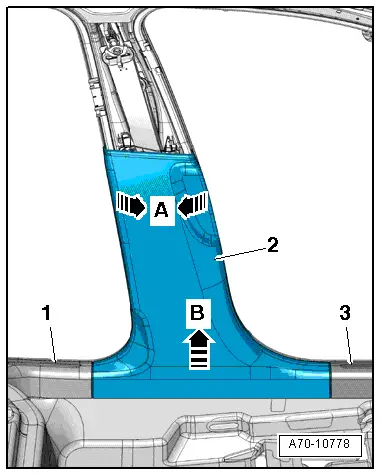

–  Unclip sill panel trim (rear)-1- at front from B-pillar trim (bottom) → Chapter.
–  Unclip sill panel trim (front) -3- at rear from B-pillar trim (bottom) → Chapter.
–  Pull B-pillar trim (bottom) -2- off -arrows A- and lift off -arrow B-.
Installing
Installation is carried out in the reverse order; note the following:
–  First position B-pillar trim at bottom of centring pin.
–  Fold lips of door seals over trim.
  A70-10778
