Removing and installing cap
Removing and installing cap
  Note
Removal and installation are identical on the left and right.

Removing
–  Fold down rear seat backrest.
–  Equipment version with fixed rear seat backrest: Remove head restraint → Chapter.

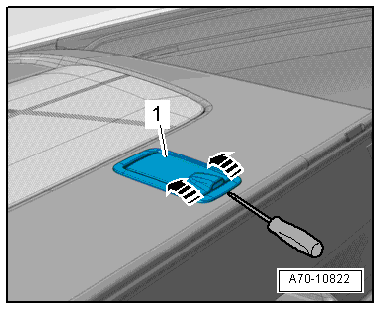

–  Use screwdriver to unclip cap -1--arrows- and detach.
Installing
Installation is carried out in the reverse order; note the following:
–  Press on cap until it engages audibly.
  A70-10822
