Removing and installing trim cover for A-pillar trim
Removing and installing trim cover for A-pillar trim
Removing and installing trim cover for A-pillar trim
Note
Removal and installation are identical on the left and right.
Removing
–
Remove dash panel end trim
→ Chapter
.
–

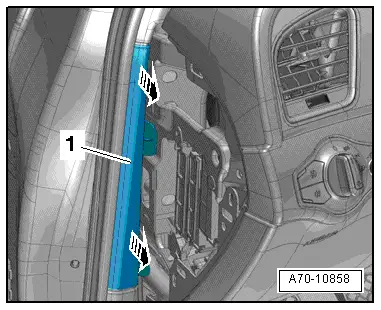

Pull trim cover
-1-
for A-pillar off towards rear
-arrows-
and detach.
Installing
Install in reverse order of removal.
