Routing of brake hoses/lines Replacement brake hoses and brake lines are supplied as spare parts ready to be installed.

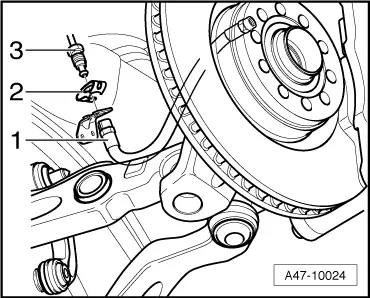

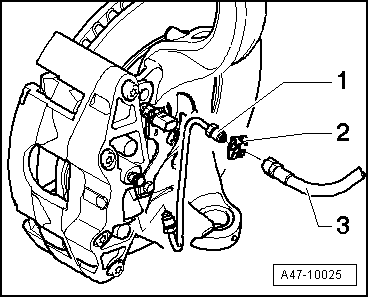

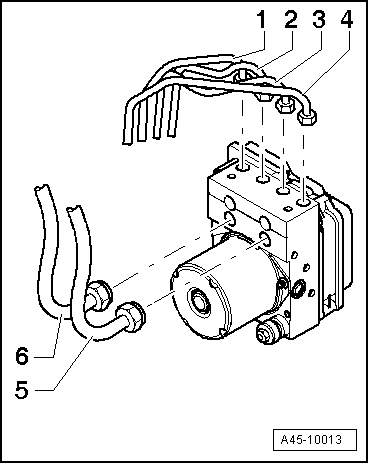

Secure brake hoses and brake lines to the original mounting points when installing. All brake lines at hydraulic unit, 14 Nm Brake hose to brake caliper at front axle –  Item -1- Brake hose; make sure that locating lugs engage properly in bracket. –  Item -2- Retaining spring

–  Item -3- Brake line, 14 Nm tightening torque –  Item -1- Brake line, 14 Nm tightening torque –  Item -2- Retaining spring

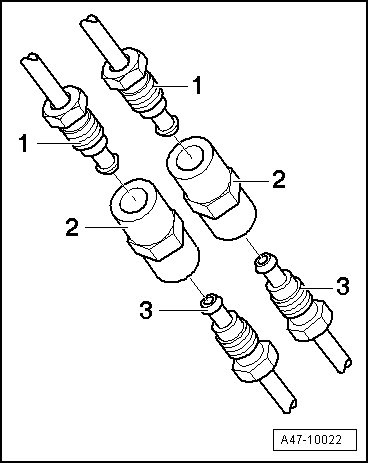

–  Item -3- Brake hose; make sure that locating lugs engage properly in bracket. Brake line routing in wheel housing at front axle –  Item -1- Brake line, 14 Nm tightening torque –  Item -2- Connection piece

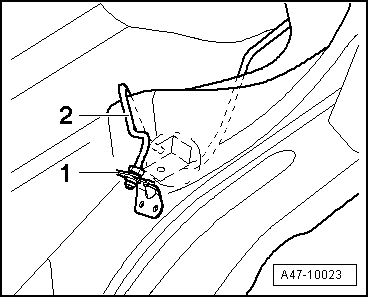

–  Item -3- Brake line, 14 Nm tightening torque Brake line connection in wheel housing at front wheels –  –  Item -1- Brake hose bracket

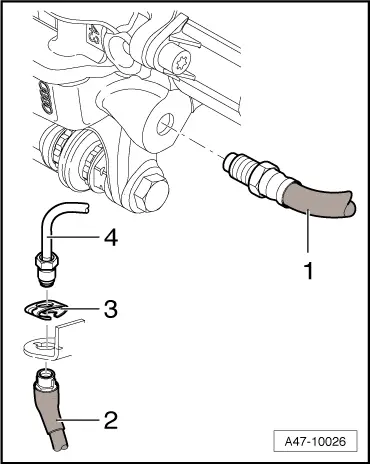

–  Item -2- Brake line, 14 Nm tightening torque Routing of brake lines at rear wheels –  Item -1- Brake hose in brake caliper, 20 Nm –  Item -2- Brake hose retainer; make sure that locating lugs engage in bracket. –  Item -3- Retaining spring

–  Item -4- Brake line, 14 Nm
