A4 Mk3

Removing and installing left and right air ducts at drive batteryA2
Removing and installing left and right air ducts at drive battery -A2-
Vehicles with a high-voltage system (hybrid vehicles)
For all work on vehicles with a high-voltage system, pay attention to the additional warnings for such vehicles → Chapter and → Electrical system; Rep. gr.93.
As work in the vicinity of high-voltage system components is necessary for the following sequence of operations, perform „Visual inspection of high-voltage components and cables for damage“ → Chapter and heed the „General warnings for working on high-voltage system“ → Electrical system; Rep. gr.93
  WARNING
Danger from unexpected engine starting
When performing general work on vehicles with a high-voltage system, switch off the ignition and remove the ignition key from the passenger compartment.
  WARNING
Working on vehicles with high-voltage wiring:
l  Do not support yourself or tools on high-voltage wiring or associated components --> this can damage the insulation.
l  High-voltage wiring must not be excessively bent or kinked --> this can damage the insulation.
l  The round high-voltage connectors are colour-coded with an external coloured ring and are provided with mechanical coding or guide lugs. It is important to observe this coding when joining up the round high-voltage connectors, otherwise the connectors can be damaged.
  DANGER!
Risk of fatal injury if high-voltage components are damaged.
Observe the following when working in the vicinity of high-voltage components or wiring:
t  It is not permitted to use cutting or forming tools, other sharp-edged tools or heat sources such as welding, brazing, soldering, hot air or thermal bonding equipment.
t  Before starting work, visually inspect the high-voltage components in the areas involved.
t  Before working in the engine compartment, visually inspect the power electronics -JX1-, electric drive motor -V141-, air conditioner compressor -V470- and high-voltage wiring.
t  Before working on the vehicle underbody, visually inspect the high-voltage wiring and covers.
t  Before working on the rear section of the vehicle, visually inspect the high-voltage wiring and the electro-box with the maintenance connector for high-voltage system - TW -.
t  Visually inspect all potential equalisation lines.
Check the following when making the visual inspection:
t  There must be no external damage on any component.
t  The insulation of the high-voltage wiring and potential equalisation lines must not be damaged.
t  There must be no unusual deformation of the high-voltage wiring.
t  All high-voltage components must be identified by a red warning sticker.
Removing

–  Switch off the ignition.
  Note
Removal of the air ducts involves taking out the drive battery on vehicles provided with the additional bolted joints -1- and -3-.
Vehicles with additional bolted joints for air ducts:
–  Remove the drive battery → Electrical system; Rep. gr.93.
–  Screw out the bolts -1, 2, 3- and detach the air ducts.
Vehicles without additional bolted joints for air ducts:
–  Remove the relevant front holder for the luggage compartment floor → General body repairs, interior; Rep. gr.70.
–  Screw out the bolts -2- and carefully unclip the air ducts from the fasteners.

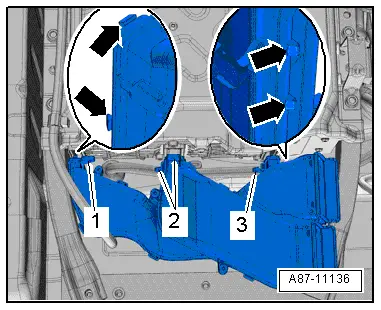

  A87-11136
Installing
Install in reverse order; paying attention to the following:
  Caution
If the air duct fasteners no longer hold, the air ducts must be secured with additional bolts -1, 3-. This involves removing the drive battery → Electrical system; Rep. gr.93.
  A87-11136
