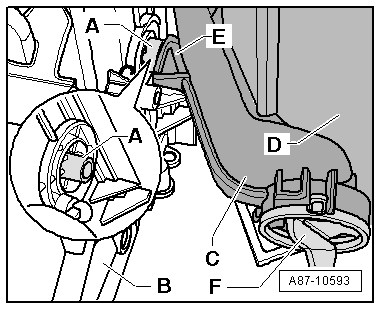

| On an air intake box -D- with a connection for glove compartment cooling -C-, the tab -E- is approx. 3 mm longer than on the version with no connection for glove compartment cooling -C-. Attention is therefore to be paid to correct assignment → Electronic parts catalogue. |
| t
| If an air intake box -D- with a connection for glove compartment cooling -C- is to be installed in a vehicle previously not fitted with an air intake box -D- with connection for glove compartment cooling -C-, the pin -A- at the right heater housing -B- must be shortened by approx. 3 mm (different versions). |
| t

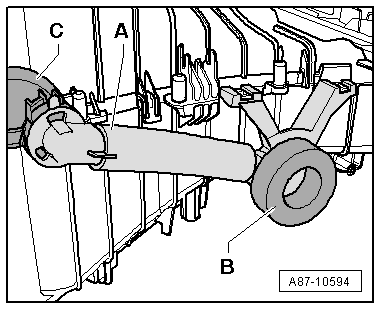

| On vehicles with an air intake box -D- with a connection for glove compartment cooling -C- not featuring the „Glove compartment cooling“ optional extra, the connection for glove compartment cooling -C- is sealed with a plug -F-. |
| t
| On vehicles with „Glove compartment cooling“ as optional extra, the plug -F- is to be removed from the connection for glove compartment cooling -C-. |
|
|
|
Note
