Complete filling of fuel pipe > < Test requirements

A4 Mk3

Preparation
Preparation
  Note

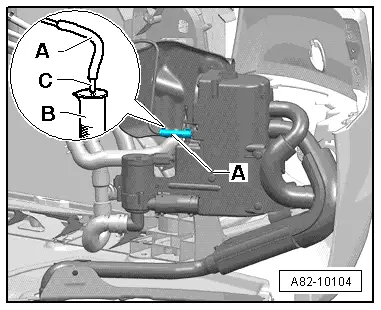

The following illustration shows the positions of the components on an Audi A5 Coupé. The layout differs slightly on the Audi A4 and Audi Q5. On these other vehicles the work is however to be performed in the same manner as described for the Audi A5 Coupé.
–  Remove the front right wheel housing liner → General body repairs, exterior; Rep. Gr.63.

–  Detach the fuel pipe -A- from the auxiliary heater.
–  Attach a graduated beaker -B- in the area of the fuel pipe -A- (e.g. with wire) and guide the fuel pipe into the graduated beaker.
–  If necessary, use a hose -C- to extend the fuel pipe -A-.
  Note
If necessary, use a piece of wire to guide the fuel pipe into the graduated beaker.
  A82-10104
