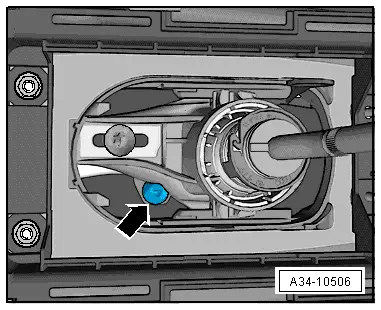

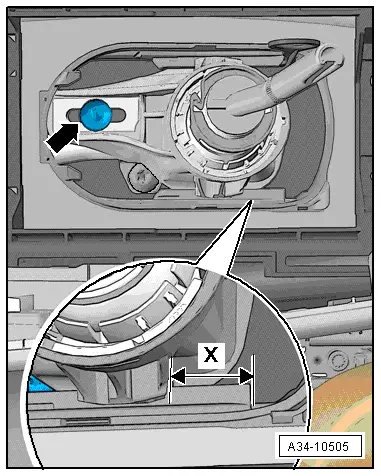

| Tighten bolt for selector rod -arrow-; tightening torque → Item. |
Note The gear lever must remain in the same position while the bolt is being tightened. |
Checking gear lever setting |
–
| Select all gears several times. |
–
| Operate reverse gear detent (press gear lever downwards) and move gear lever all the way to the left into reverse gear gate. |
–
| Now move gear lever forwards and engage reverse gear. |
Note Do not exert any sideways pressure on the gear lever while engaging reverse. |
–
| Check that reverse gear has actually been engaged, and not 1st gear. |
l
| If 1st gear has been engaged instead of reverse, the gear lever is set too far to the left. Adjust appropriately → Anchor. |
–
| Move gear lever out of reverse. |
–
| Now engage 2nd gear, but at the same time exert increased pressure towards the left. |
l
| If the gear lever sticks when engaging 2nd gear, it is set too far to the right. Adjust appropriately → Anchor. |
Note t
| It should only be possible to engage reverse gear after overcoming the reverse gear detent. |
t
| The gear lever should return by itself from the reverse gear gate to the 3rd/4th gear gate. |
t
| If the gear lever sticks or baulks repeatedly when engaging a gear, perform the adjustment procedure again → Anchor. |
–

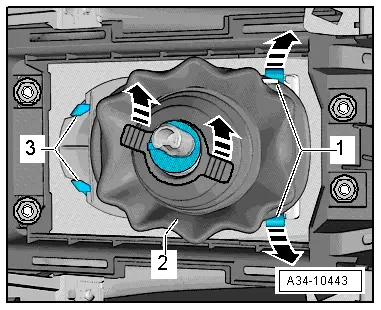

| Install gear knob together with boot → Chapter. |
|
|
|
