Removing and installing selector mechanism
Removing and installing selector mechanism
Special tools and workshop equipment required

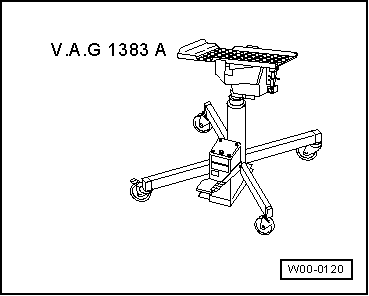

t  Engine and gearbox jack -V.A.G 1383 A-
  W00-0120
t  Gearbox support -T10337-
  W00-10418

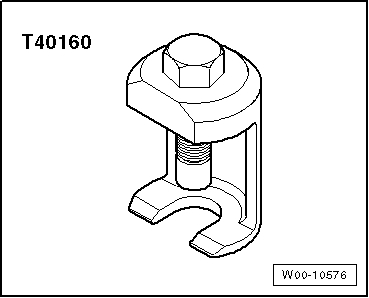

t  Puller -T40160-
  W00-10576
Removing
–  Switch off ignition.

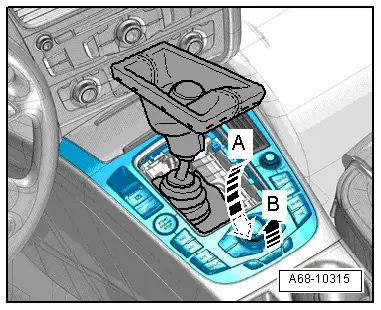

–  Remove gear knob with gear lever boot → Chapter.
–  Remove air conditioner operating and display unit → Rep. gr.87.
  A87-10438
–  Remove multimedia system operating unit -E380- → Rep. gr.91.
  A68-10315

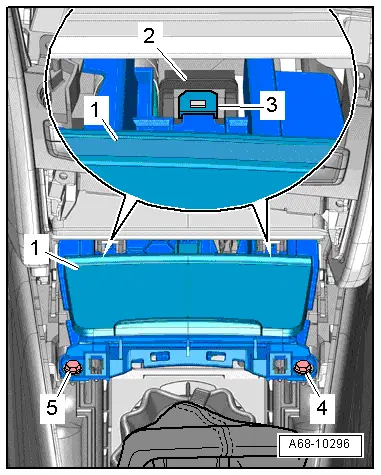

–  Remove front ashtray -1- → Rep. gr.68.
  A68-10296
–  Remove noise insulation above selector mechanism → Chapter.

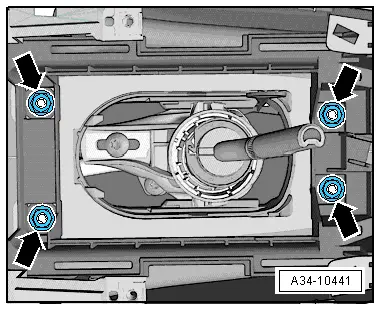

–  Remove nuts -arrows-.
  A34-10441

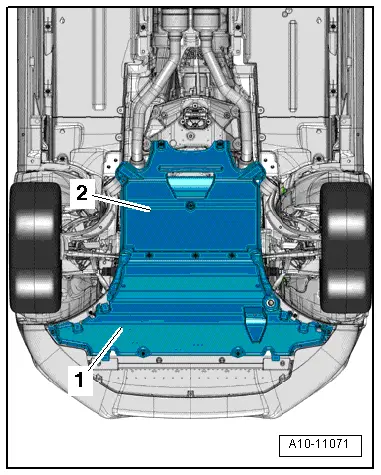

–  Remove rear noise insulation (loosen fasteners -2- and -3-).
  A10-11071
  Note
The flexible pipe connection (de-coupling element) in the front exhaust pipe must not be bent more than 10° - otherwise it can be damaged.
–  Disconnect exhaust system at clamp -arrow-.
  A26-10015

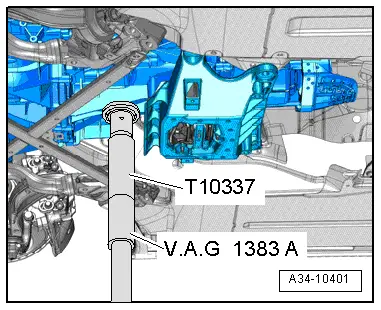

–  Support gearbox using engine and gearbox jack -V.A.G 1383 A- with gearbox support -T10337- attached.
–  Slightly lift gearbox with engine and gearbox jack -V.A.G 1383 A-.
  WARNING
Risk of accident.
Engine and gearbox jack -V.A.G 1383 A- must remain in position when work is being carried out and must not be left unattended.
  A34-10401

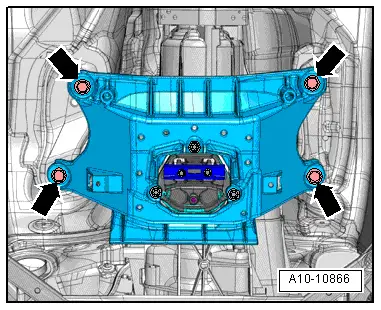

–  Remove bolts -arrows- for tunnel cross member.
  A10-10866

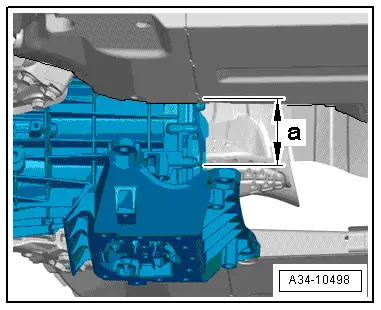

–  Lower gearbox by dimension -a- using engine and gearbox jack -V.A.G 1383 A-.
l  Dimension -a- = 60 mm (maximum)
  A34-10498

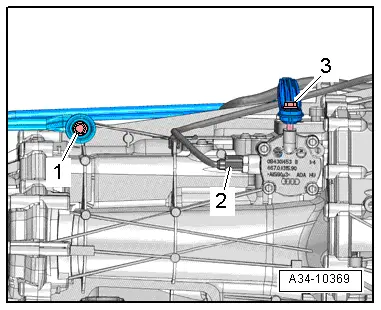

–  Remove bolt -1- for push rod and bolt -3- for connecting rod.
  Note
-Item 2- can be disregarded.
  A34-10369

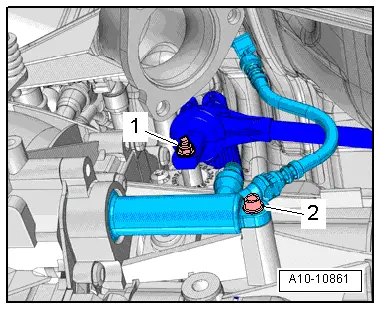

–  Remove nut -1-.
  Note
-Item 2- can be disregarded.
  A10-10861
  Caution
Risk of damage to selector shaft in gearbox.
Do not prise off or knock off the gearbox selector lever -1- with a lever or hammer.

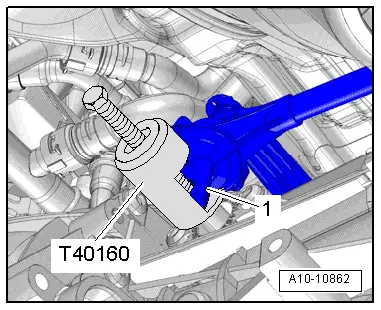

–  Apply puller -T40160- and pull off gearbox selector lever -1-.
  A10-10862
–  If fitted, remove bolts -4- and detach cross piece -3-.
–  Remove nuts -1- and detach heat shield -2-.
–  Take out selector mechanism towards rear.
Installing
Installation is carried out in reverse sequence; note the following:
Tightening torques → Chapter and → Chapter
  Note
Always renew seals, gaskets and self-locking nuts.
–  Install tunnel cross member → Chapter.
–  Install exhaust system and perform stress-free alignment → Rep. gr.26.
–  Install rear noise insulation → Rep. gr.66.
–  Adjust selector mechanism → Chapter.
–  Install multimedia system operating unit -E380- → Rep. gr.91.
–  Install air conditioner operating and display unit → Rep. gr.87.
  A66-10292
