Rear final drive 0BF and 0BE - sport differential
Rear final drive 0BF and 0BE - sport differential
  Note
t  Code letters, allocation, ratio, capacities → Rear final drive 0BF and 0BE - sport differential; Rep. gr.00.
t  Refer to Workshop Manual → Rear final drive 0BF and 0BE - sport differential; Rep. gr.39 for repairs to the propshaft or the rear final drive.

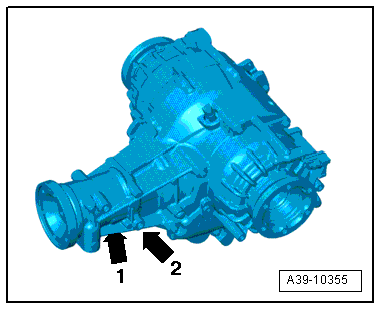

Location on rear final drive
Classification of clutches -arrow 1-
Code letters and date of manufacture -arrow 2-
  Note
The rear final drive units „0BE“ and „0BF“ can be identified by the hydraulic control unit with superposition gears at the sides.
  A39-10355

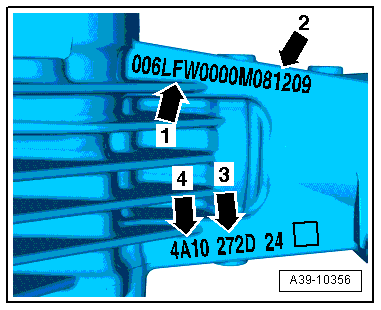

t  -Arrow 1- Code letters -LFW-
t  -Arrow 2- Manufacturing data of rear final drive
  A39-10356
Example:081209
 III
 Year -2008-
of manufacture		MonthDay

t  -Arrow 3- Classification of clutch on right side (classification of friction coefficients for clutch). Example: -272D-
t  -Arrow 4- Classification of clutch on left side (classification of friction coefficients for clutch). Example: -4A10-
Other information can be disregarded.
  Note
When installing a new rear final drive unit, it is important to verify not only the code letters of the final drive but also the PR No. and the engine code of the vehicle in the → Electronic parts catalogue. This is necessary to ensure that the correct version is installed.
