A4 Mk3
|

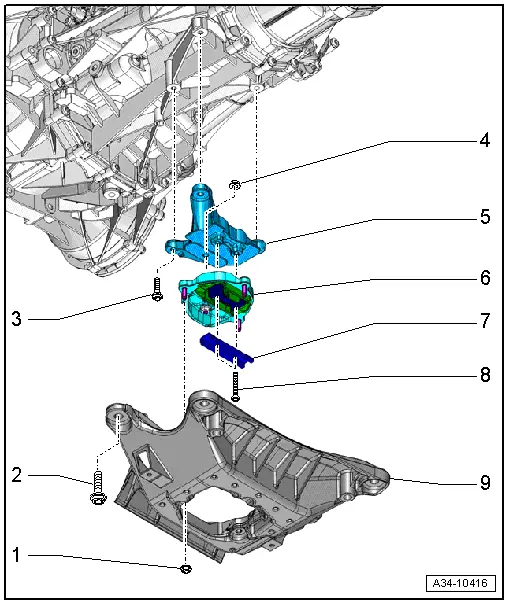

1 - | Nut |
q | 20 Nm |
2 - | Bolt |
q | 70 Nm |
3 - | Bolt |
q | 40 Nm |
4 - | Nut |
q | 20 Nm |
5 - | Gearbox support |
q | → Chapter „Removing and installing gearbox support with gearbox mounting“ |
6 - | Gearbox mounting |
q | → Chapter „Removing and installing gearbox mounting“ |
7 - | Stop (bottom) |
q | For gearbox mounting |
8 - | Bolt |
q | 20 Nm |
9 - | Tunnel cross member |
q | → Chapter „Removing and installing tunnel cross member“ |
q | On some versions an additional air deflector is bolted to the underside of the tunnel cross member to cool the self-locking centre differential |
|
