Removing gearbox - vehicles with 4-cyl. petrol engine

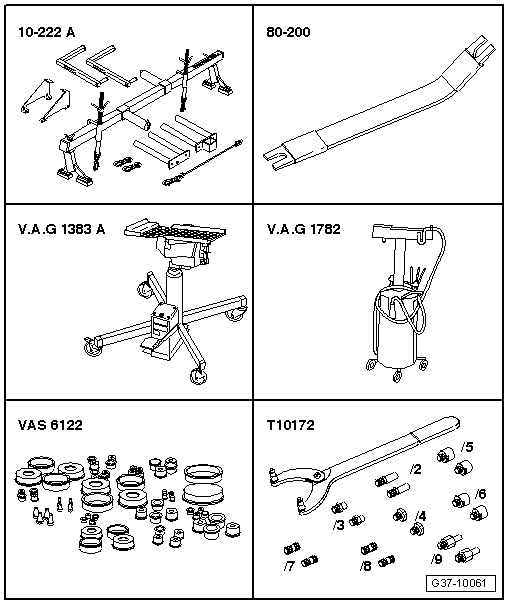

Special tools and workshop equipment required

t	Removal lever -80 - 200-

t	Support bracket -10 - 222 A-

t	Engine and gearbox jack -V.A.G 1383 A-

t	Used oil collection and extraction unit -V.A.G 1782-

t	Engine bung set -VAS 6122-

t	Counterhold tool -T10172- with -T10172/5-

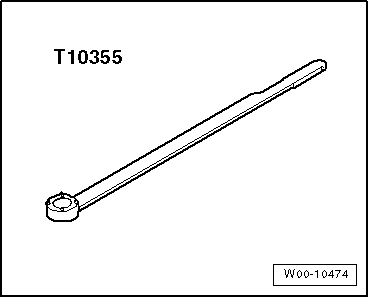

t  Counterhold tool -T10355-

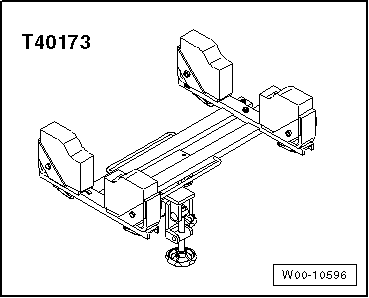

t  Gearbox support -T40173-

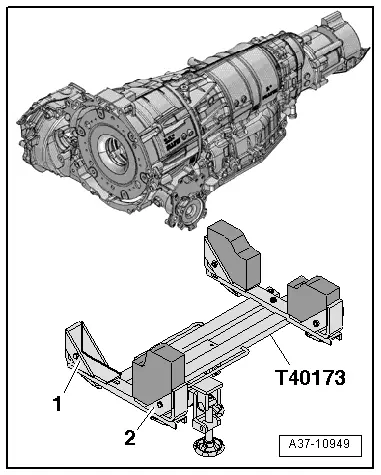

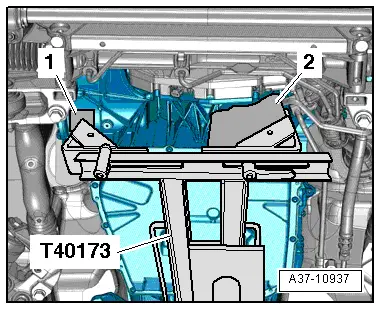

Preparing gearbox support -T40173-: –  Mounting block attached at -position 1- must be removed. –  Mounting block attached at -position 2- must be rotated so that the longer side faces upwards, as shown in illustration.

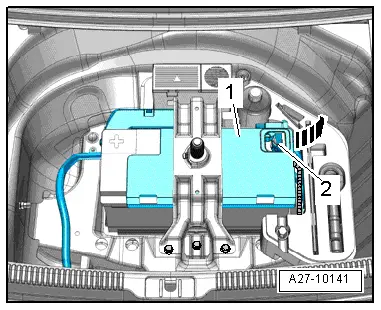

Removing –  Bring wheels into straight-ahead position.   Caution When disconnecting the battery there is a risk of serious damage to electronic components: Observe the correct procedure for disconnecting the battery → Electrical system; Rep. gr.27. –  Switch off ignition and take out ignition key. –  Disconnect earth wire -2- from battery terminal →  Electrical system; Rep. gr.27.

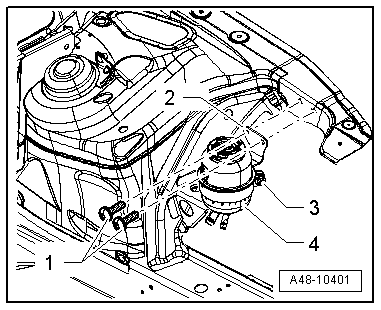

Vehicles with hydraulic power-assisted steering: –  Extract power steering hydraulic fluid from reservoir -3- with used oil collection and extraction unit -V.A.G 1782-.   Note -Items 1, 2, and 4- can be disregarded.

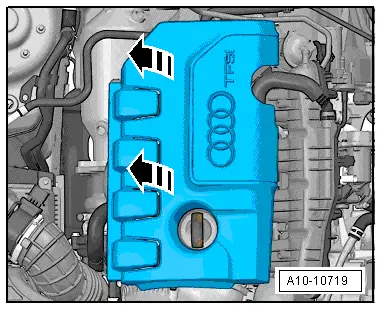

Continued for all vehicles: –  Remove engine cover panel -arrows-. –  Remove plenum chamber partition panel → General body repairs, exterior; Rep. gr.50.

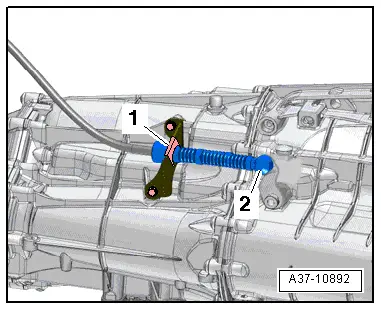

–  Use removal lever -80 - 200- to press ball socket -2- on selector lever cable off gearbox selector lever. –  Pull off retaining clip -1- and move selector lever cable clear.   Note Do not bend or kink the selector lever cable.

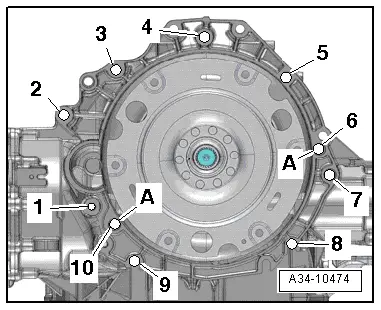

–  Remove bolts -2 … 5- securing gearbox to engine (accessible from above).   Note Item -A- can be disregarded.   Note

Bolt -2- secures the starter to the gearbox and has an additional spacer sleeve -arrow-.

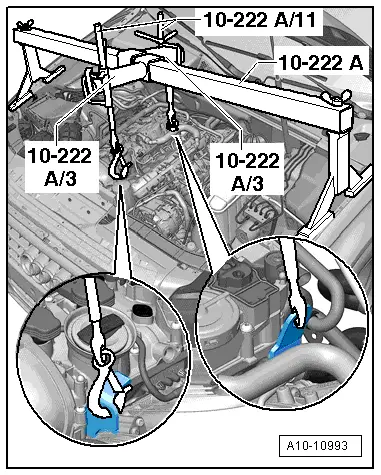

–  Set up support bracket -10 - 222 A- with adapter -10 - 222 A /3- on suspension turrets (left and right), as shown in illustration. –  Hook spindles -10 - 222 A /11- onto engine lifting eyes (front and rear).

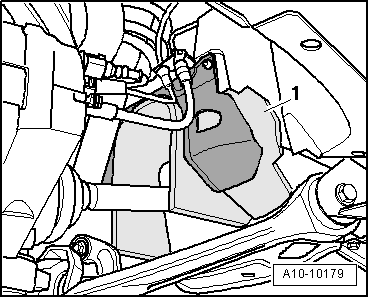

–  Remove both front wheels. –  Remove cover -1- for drive shaft from wheel housing (both sides).

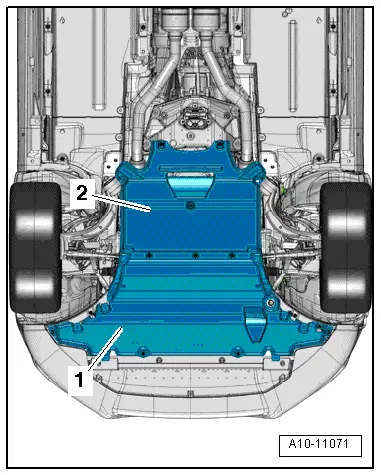

–  Remove noise insulation panels -1- and -2- → General body repairs, exterior; Rep. gr.66.

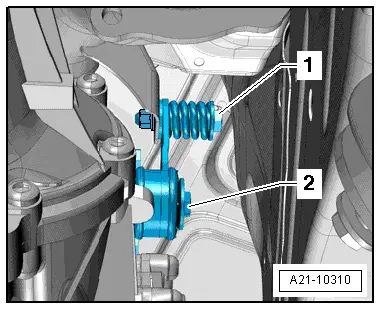

–  Remove bolt -1-.   Note -Item 2- can be disregarded.

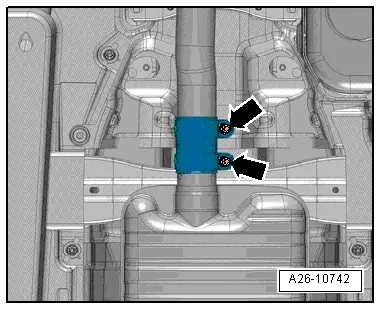

Caution The flexible joint in the front exhaust pipe can be damaged. The flexible joint in the front exhaust pipe must not be bent further than 10°. –  Unscrew bolts -arrows- and push clamp towards rear.

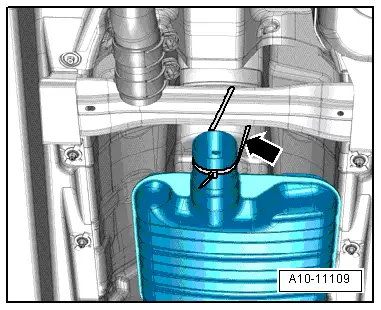

–  Lower front exhaust pipe slightly and tie to cross piece -arrow-.

–  If fitted, remove bolts -arrows- and detach heat shield -1- for propshaft.

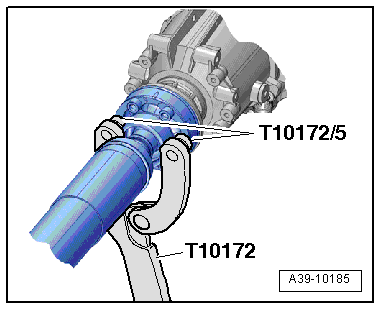

Vehicles with bolted propshaft: –  Remove bolts from connection between propshaft and gearbox (counterhold using counter-hold tool -T10172- with -T10172/5-). –  Slide propshaft together towards rear final drive. The constant velocity joints can be moved axially. –  Tie propshaft up to one side.

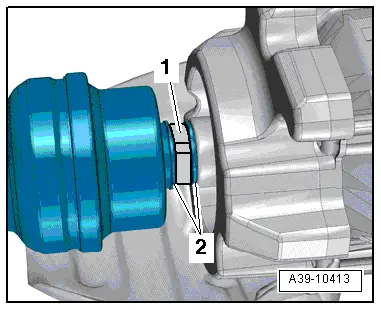

Vehicles with propshaft with splines on gearbox end:   Note Please refer to the vehicle data sticker or the identification on the rear final drive to find out which type of rear final drive is installed in the vehicle. Then select the appropriate Workshop Manual for the rear final drive. –  Remove propshaft → Rear final drive 0BC; Rep. gr.39 or → Rear final drive 0BF and 0BE - sport differential; Rep. gr.39.

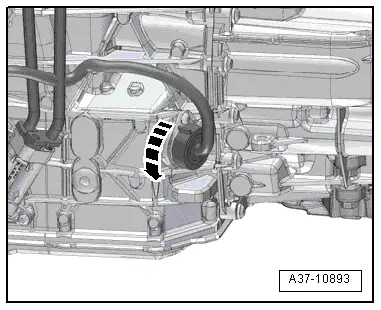

Continued for all vehicles:   Caution The gearbox control unit (mechatronic unit) can be damaged by electrostatic discharge. t  Before handling the electrical connector, the mechanic must discharge static by briefly touching an earthed metal object, such as vehicle earth, lifting platform or heater radiator, etc. t  Do not touch contact pins in gearbox connector with bare hands. –  Turn fastener anti-clockwise -arrow- and unplug electrical connector on gearbox. –  Move electrical wiring harness clear.

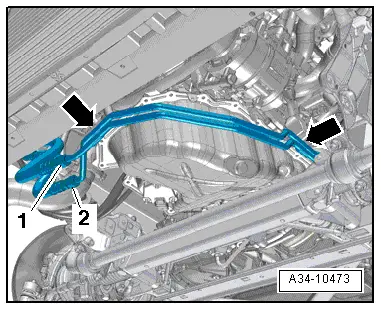

–  Remove bolts -arrows- for ATF lines.   Note -Items 1 and 2- can be disregarded.

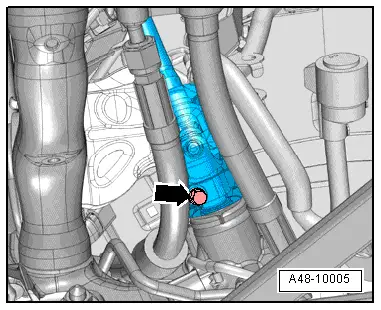

Vehicles with in-line ATF filter:   Note Place a cloth below the connection to catch escaping ATF. –  Unscrew bolt -arrow-, detach ATF line -1- from gearbox and place to one side.   Note -Item 2- can be disregarded.

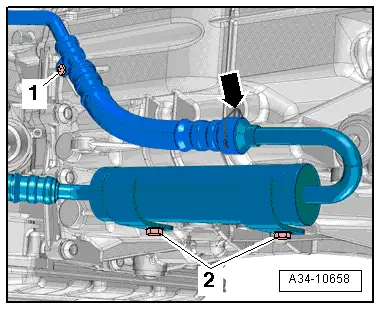

–  Remove bolt -1-. –  Pull out retaining clip -arrow- and disconnect ATF line from in-line ATF filter.   Note -Item 2- can be disregarded. –  Seal off open lines and connections with clean plugs from engine bung set -VAS 6122-.

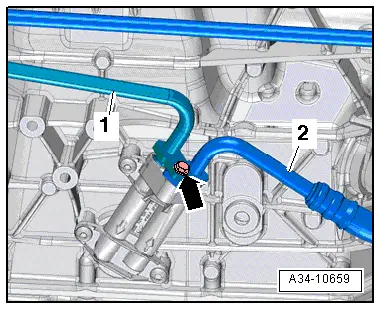

Vehicles with exchangeable ATF filter: –  Remove bolt -arrow- and detach ATF lines -1, 2- from gearbox. –  Seal off open lines and connections with clean plugs from engine bung set -VAS 6122-.

A5 Cabriolet/Sportback: –  Remove diagonal struts (left and right) → Running gear, front-wheel drive and four-wheel drive; Rep. gr.42.

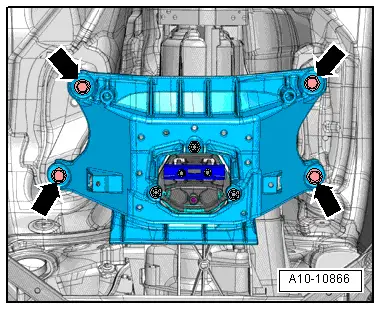

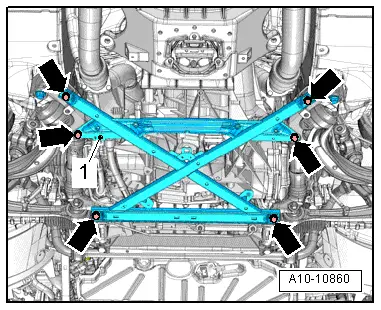

Continued for all vehicles: –  Remove subframe cross brace → Rep. gr.40.   Caution Risk of damage to parts of the running gear. Do not let the vehicle down on the wheels if the gearbox mounting, steering box and subframe cross brace are not properly installed.

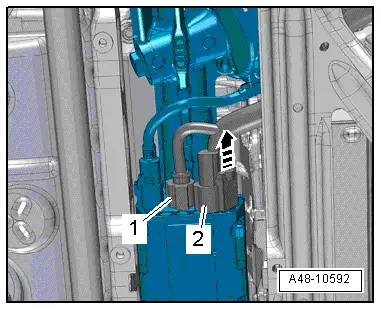

Vehicles with electromechanical power-assisted steering: –  Unplug electrical connector -2- from power steering control unit -J500- (to do so, release retainer -arrow- and press down release catch). –  Unplug electrical connector -1- on power steering control unit -J500-. –  Move electrical wiring harness clear.

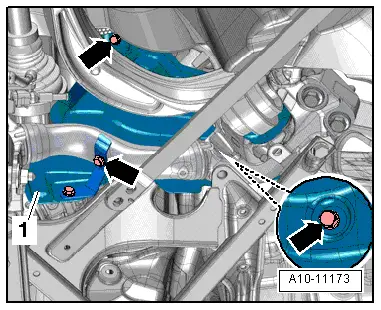

Continued for all vehicles: –  If fitted, remove bolts (left and right) -arrows- and detach heat shields -1-.

–  Detach intermediate steering shaft from steering box and telescope shaft upwards → Running gear, front-wheel drive and four-wheel drive; Rep. gr.48.

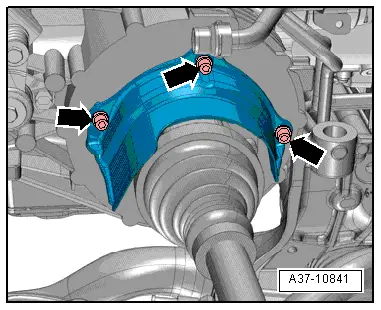

–  Remove bolts -arrows- and detach heat shield for drive shaft (right-side). –  Unbolt drive shafts (left and right) from flange shafts on gearbox.

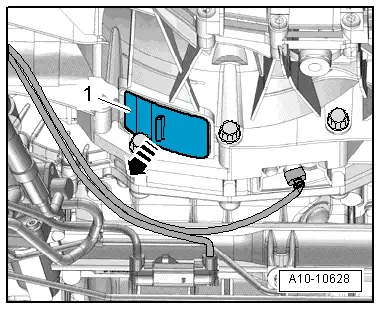

–  Pull cover -1- off bottom of gearbox -arrow-.

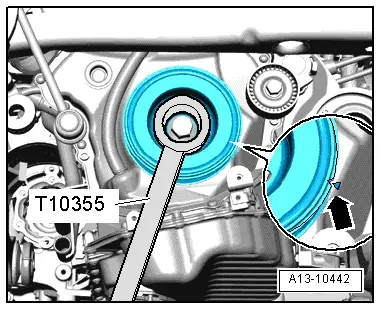

–  To slacken bolts for flywheel, counterhold crankshaft with counter-hold tool -T10355-.   Note t  When you then turn the crankshaft, only turn crankshaft in direction of engine rotation. t  -Arrow- can be disregarded.

–  Remove 3 bolts -arrow- for flywheel (turn crankshaft 120° in direction of engine rotation each time).

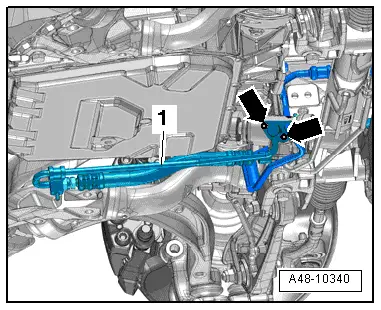

Vehicles with hydraulic power-assisted steering: –  Place used oil collection and extraction unit -V.A.G 1782- below connection. –  Remove bolts -arrows-, detach hydraulic line -1- from steering box and place to one side. –  Seal off open lines and connections with clean plugs from engine bung set -VAS 6122-.

Continued for all vehicles: –  Remove bolt -1- for starter. –  Detach starter from gearbox but do not remove starter. –  Remove remaining engine/gearbox securing bolts -6 … 10-.   Note Item -A- can be disregarded.

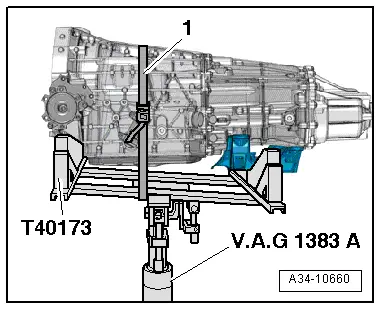

Caution Risk of leaks on ATF oil pan. Do not apply gearbox support -T40173- at ATF oil pan. –  Position engine and gearbox jack -V.A.G 1383 A- with gearbox support -T40173- (already prepared) underneath gearbox. Gearbox support must be positioned as follows at front of gearbox: l  On left side of gearbox, mounting block -2- engages in opening for flywheel on gearbox housing. l  On right side of gearbox, gearbox support is applied to differential housing. Place flat rubber block -1- between the two to protect housing.

–  Use tensioning strap -1- to secure gearbox.

–  Remove bolts -arrows- for tunnel cross member.   Note The illustration does not show engine and gearbox jack -V.A.G 1383 A-. –  Detach gearbox from engine and lower carefully using engine and gearbox jack -V.A.G 1383 A-.
