A4 Mk3

Removing and installing wiring harness in gearbox
Removing and installing wiring harness in gearbox
Removing
  Caution
The gearbox control unit (mechatronic unit) can be damaged by electrostatic discharge.
t  Before touching or removing the mechatronic unit, always discharge any static electricity by touching an earthed object with your hand.
t  DO NOT touch contacts in 16-pin connector with your hands, as static discharge can seriously damage the control unit and mechatronic unit.
–  Remove mechatronic unit → Chapter.

–  Touch gearbox housing with your hand (without gloves) to discharge any static electricity.

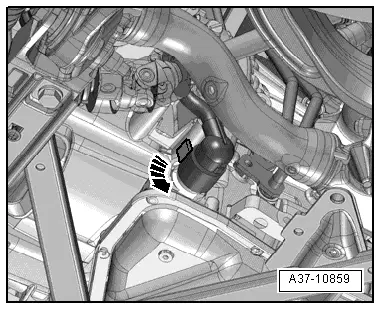

–  Turn fastener anti-clockwise -arrow- and unplug electrical connector on gearbox.
  A37-10859

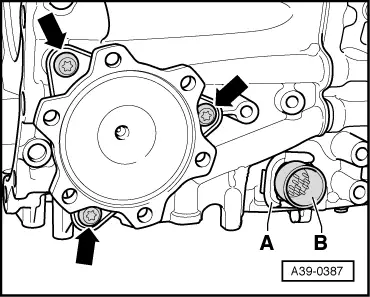

–  Pull off retaining clip -A- for wiring harness connector.
  Note
-Arrows- can be disregarded.
–  Push wiring harness connector -B- inwards into gearbox and detach wiring harness.
Installing
Installation is carried out in reverse sequence; note the following:
–  Renew O-rings on connector for wiring harness and lightly lubricate with ATF.
–  Install wiring harness connector in gearbox housing. Note correct position.
  A39-0387
–  Attach retaining clip -A- for wiring harness connector -B-.
–  Install mechatronic unit → Chapter.
  A39-0387
