Renewing oil seals for flange shafts on rear final drive (removed)

Renewing oil seals for flange shafts (rear final drive removed)
Renewing oil seals for flange shafts (rear final drive removed)
l  The oil seals can be only be renewed with the final drive removed.
Special tools and workshop equipment required

t  Puller -T10037-
  W00-0976

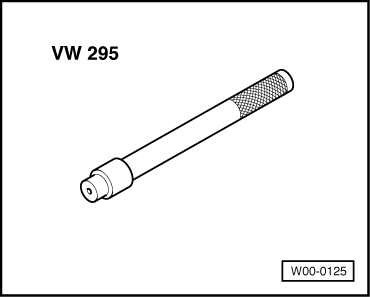

t  Drift -VW 295-
  W00-0125

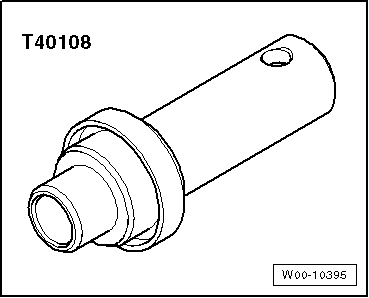

t  Thrust piece -T40108-
t  Sealing grease -G 052 128 A1-
Removing
–  Observe the general repair instructions → Chapter.
–  Remove rear final drive → Chapter.
  W00-10395
Removing flange shaft (right-side)
–  Secure puller -T10037- to housing -arrow- and pull out flange shaft.
  A39-10264

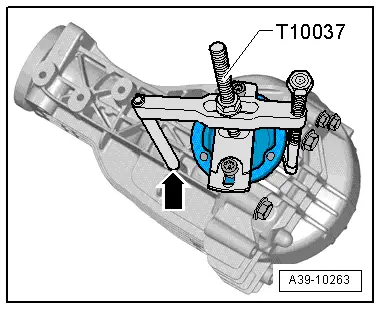

Removing flange shaft (left-side)
–  Secure puller -T10037- to housing -arrow- and pull out flange shaft.
  A39-10263

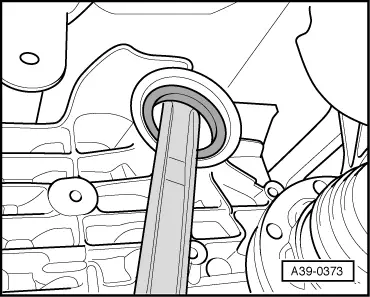

–  Pry out oil seal with a suitable assembly lever.
Installing
Perform installation in reverse sequence of removal. Note the following:
  A39-0373

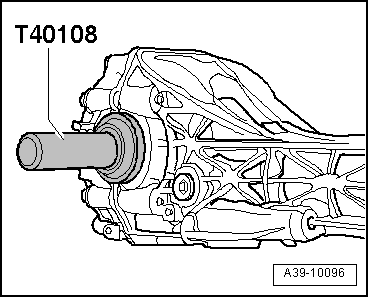

Installing oil seal (right-side)
–  Lightly lubricate outer circumference of oil seal with gear oil.
–  Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-.
–  Drive in new oil seal onto stop (take care to keep oil seal straight).
  A39-10096
Installing oil seal (left-side)
–  Lightly lubricate outer circumference of oil seal with gear oil.
–  Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-.
–  Drive in new oil seal onto stop (take care to keep oil seal straight).
  A39-10097

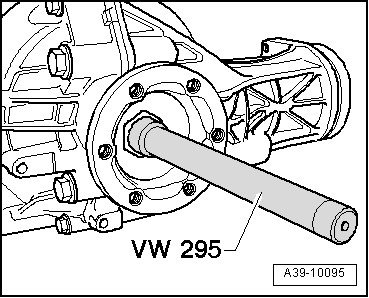

Installing flange shaft (right and left)
–  Drive in flange shaft with drift -VW 295-.
–  Install rear final drive → Chapter.
–  Check oil level in rear final drive → Chapter.
  A39-10095
