Checking ATF level in rear final drive 0BF and 0BE
Checking ATF level in rear final drive 0BF and 0BE
Test condition:
l  ATF temperature 10°C ... 60°C
l  Rear final drive must be in installation position.
l  Vehicle must be level (horizontal).
Special tools and workshop equipment required
t  Drip tray

Rear final drive 0BF
  Caution

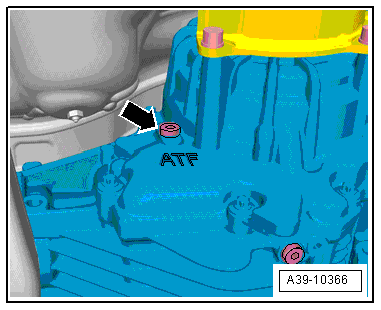

t  The inspection plug -arrow- for checking the ATF level is located on the left side of the rear final drive.
t  Overview of plugs for ATF → Fig.
–  Unscrew ATF inspection plug -arrow- to check ATF level.
  A39-10366
Rear final drive 0BE
  Caution

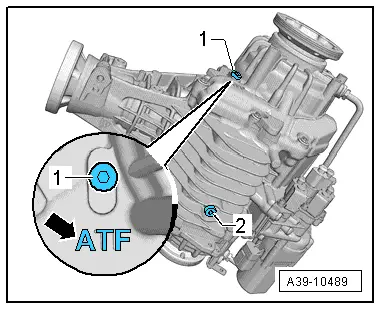

t  The inspection plug -1- for checking the ATF level is located on the left side of the rear final drive. Identification: »ATF« on final drive housing -arrow-.
t  Overview of plugs for ATF → Fig.
–  Unscrew ATF inspection plug -1- to check ATF level.
Continued for all rear final drive versions
l  The ATF level is correct when the rear final drive is filled to the bottom lip of the filler hole.
If ATF level is correct:
–  Screw in and tighten new ATF inspection plug. Tightening torque → Item
If ATF level is not correct:
–  Top up with ATF → Chapter.
  A39-10489
