Checking gear oil level in rear final drive 0BF and 0BE
Checking gear oil level in rear final drive 0BF and 0BE
Test condition:
l  Gear oil temperature: 10°C ... 60°C
l  Rear final drive must be in installation position.
l  Vehicle must be level (horizontal).
l  Overview of plugs for gear oil → Fig. and → Fig.
Special tools and workshop equipment required
t  Drip tray

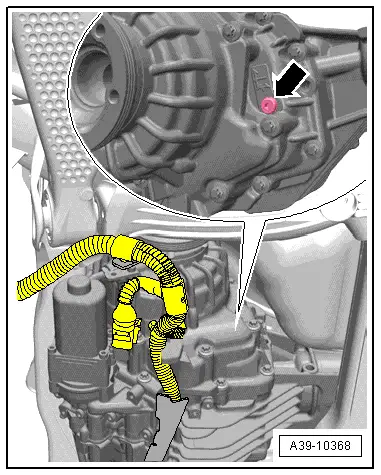

Rear final drive 0BF
–  Remove gear oil inspection plug -arrow- (located on right side of final drive).
  A39-10368

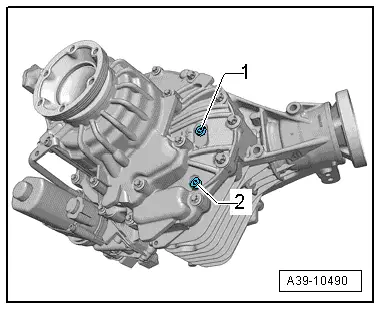

Rear final drive 0BE
–  Remove gear oil inspection plug -1-.
Continued for all rear final drive versions
l  The oil level is correct when the rear final drive is filled to the bottom lip of the filler hole.
–  Top up gear oil if necessary.
t  → Chapter „Filling up gear oil in rear final drive 0BF“
t  → Chapter „Filling up gear oil in rear final drive 0BE“
–  Screw in and tighten gear oil inspection plug -arrow-. Tightening torque → Item
  A39-10490
