A4 Mk3
| Exploded view - removing and installing input shaft, output shaft, reverse gear wheel and selector plates / selector forks |
| 1 - | Gearbox housing |
| q | With differential and pinion shaft |
| 2 - | Oil collector |
| q | Is clipped into bearing mounting and selector plate / selector fork for 3rd/4th gear |
| 3 - | Input and output shafts with selector fork cluster |
| q | Dismantling and assembling → Chapter |
| 4 - | Reverse gear wheel |
| q | With support for reverse shaft |

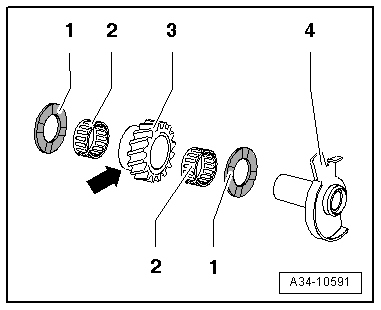

| q | Exploded view - reverse gear wheel → Fig. |
| 5 - | Magnet |
| q | Clean |
|
|
