Removing and installing input shaft, output shaft, reverse gear wheel and selector plates/selector forks

1 -	Gearbox housing

q	With differential and pinion shaft

2 -	Input and output shafts with selector fork cluster

q	Dismantling and assembling → Chapter

3 -	Oil collector

q	Clipped into bearing mounting

4 -	Reverse gear wheel

q	With reverse shaft

q	Exploded view - reverse gear wheel → Fig.

5 -

Oil guide

6 -

Magnet

Clean

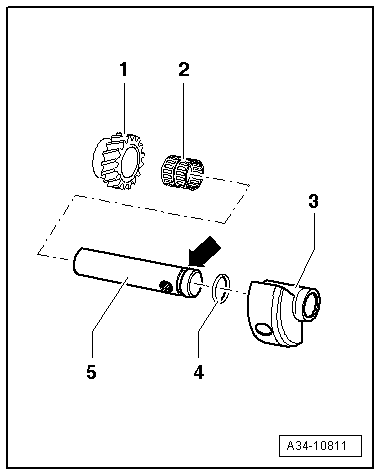

Exploded view - reverse gear wheel

1 -	Reverse gear wheel

Installation position: Shoulder facing gearbox housing.

2 -	Needle bearing

3 -	Reverse shaft support

4 -

O-ring

5 -	Reverse shaft

Insert the O-ring (item 4) in the all-round groove -arrow-.

The tapped hole in the reverse shaft must be on a line with the hole in the reverse shaft support.
