Renewing oil seal for flange shaft (right-side)
Renewing oil seal for flange shaft (right-side)
Special tools and workshop equipment required

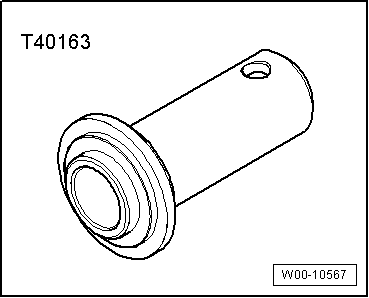

t  Thrust piece -T40163-
t  Lever
  W00-10567
Procedure
–  Remove flange shaft (right-side) → Chapter.

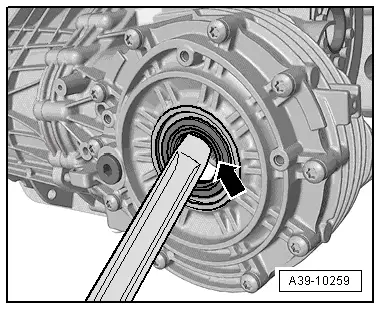

–  Lever out oil seal for flange shaft -arrow-.
–  Lightly oil outer circumference of new oil seal.
  A39-10259

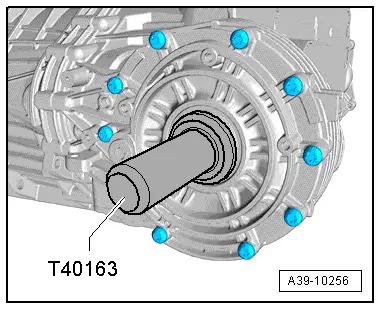

–  Drive in oil seal for flange shaft (right-side) as far as stop using thrust piece -T40163-; keep seal straight when installing.
–  Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-.
–  Install flange shaft (right-side) → Chapter.
  A39-10256
