A4 Mk3

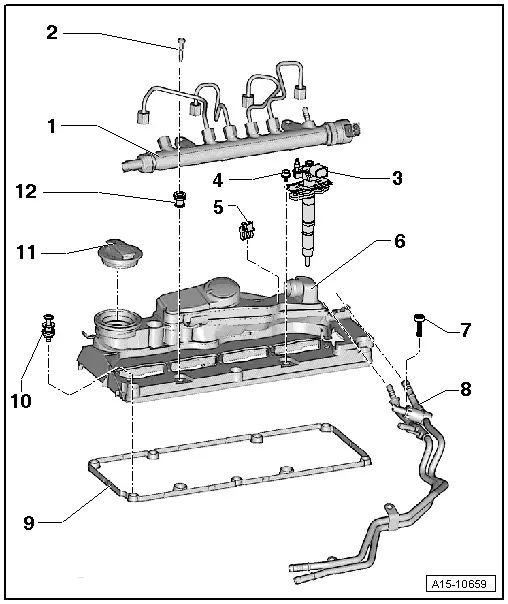

| Cylinder head cover - exploded view |
| 1 - | High-pressure reservoir (rail) |
| q | With injector pipes |
| q | Do not attempt to bend injector pipes to a different shape |
| 2 - | Bolt |
| q | 22 Nm |
| 3 - | Injector (piezo injector) |
| q | Removing and installing → Rep. gr.23 |
| 4 - | Bolt |
| q | Tightening torque → Rep. gr.23 |
| 5 - | Retaining clip |
| 6 - | Cylinder head cover |
| q | Removing and installing → Chapter |
| 7 - | Bolt |
| q | 10 Nm |
| 8 - | Fuel pipes |
| 9 - | Gasket |
| q | Renew if damaged or leaking |
| 10 - | Bolt |
| q | Slackening → Fig. |
| q | Observe correct tightening sequence → Fig. |
| 11 - | Filler cap |
| 12 - | Bush |
| q | To secure high-pressure reservoir (rail) |
| q | Renew if damaged |
|
|
Note
