Removing and installing poly V-belt

Special tools and workshop equipment required

t	Locking tool -T40098-

Removing

–	Remove engine cover panel -arrows-.

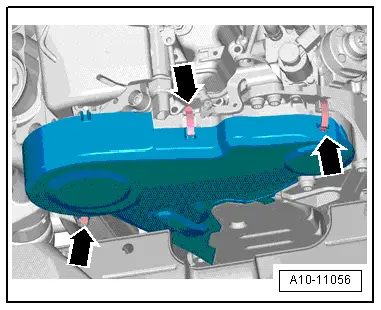

–	Open clips -arrows- and remove toothed belt cover.

Caution

If a used belt runs in the opposite direction when it is refitted, this can cause breakage.

Before removing, mark direction of rotation of poly V-belt with chalk or felt-tip pen for re-installation.

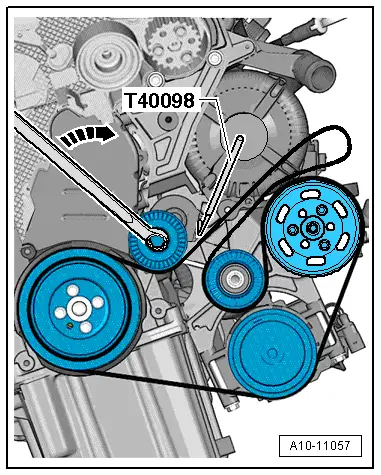

–	Swivel tensioner in direction of -arrow-, detach poly V-belt from alternator pulley and lock tensioner using locking tool -T40098-.

–	Take off poly V-belt.

Installing

Install in reverse order. Note the following:

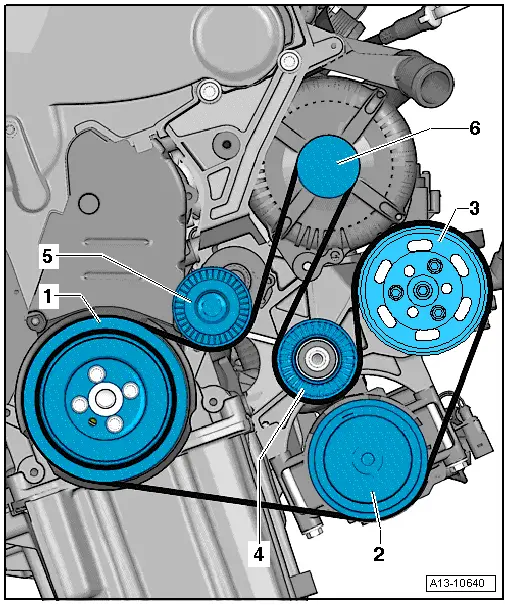

Fit poly V-belt as illustrated.

1 -	Vibration damper

2 -	Air conditioner compressor

3 -	Power steering pump pulley

4 -	Idler roller

5 -	Poly V-belt tensioner

6 -	Alternator

Note

When installing poly V-belt, make sure it is properly seated on pulleys.

–	Start engine and check that belt runs properly.
