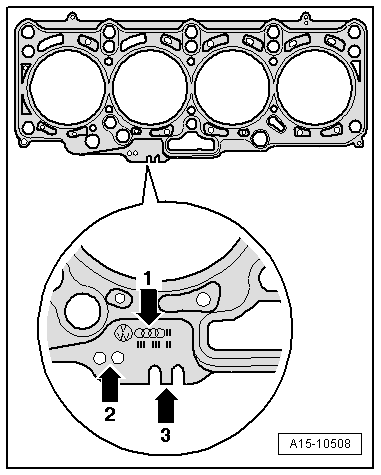

Identification of cylinder head gasket |
Note t
| If the measured values for piston projection are not the same for all pistons, use the highest value to determine the correct gasket size. |
t
| Cylinder head gaskets of different thicknesses are fitted depending on piston projection. When replacing the cylinder head gasket, install a new gasket with the same identification -arrow 2-. |
|
|
|
