Removing and installing engine mountings   Note t  To avoid repeat repairs, proceed as follows if an engine mounting is defective: t  Renew engine mounting and corresponding bracket. t  Also renew engine mounting on opposite side; check corresponding bracket and renew if necessary. Special tools and workshop equipment required

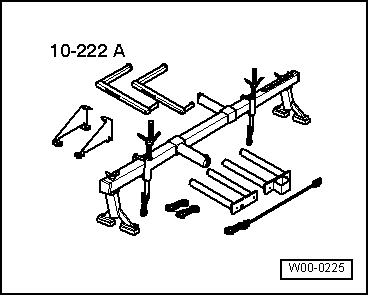

t  Support bracket -10 - 222 A-

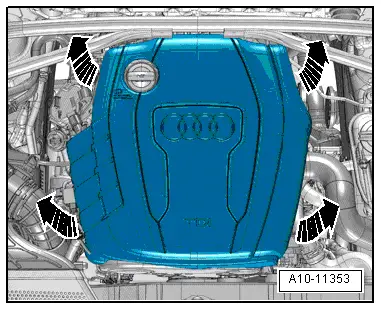

Removing –  Remove engine cover panel -arrows-.

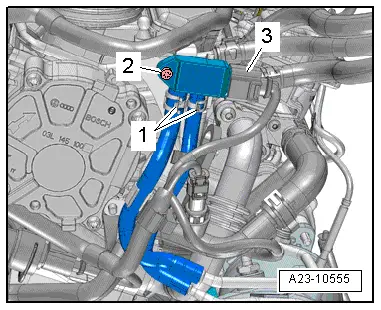

–  Unplug electrical connector -3-. –  Remove bolt -2- and move hoses -1- clear at bracket. –  Move pressure differential sender -G505- to rear.

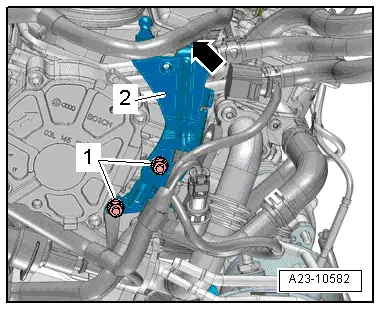

–  Move clear electrical wiring harness -arrow-. –  Remove nuts -1- and detach bracket -2-.

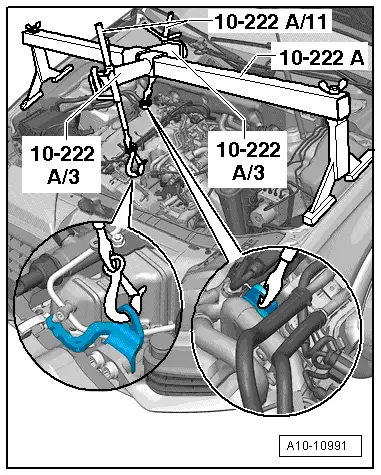

–  Set up support bracket -10 - 222 A- on suspension turrets (left and right) as illustrated. –  Attach spindles -10 - 222 A /11- to engine lifting eyes. –  Partly take up weight of engine with spindles.

–  Remove wheel housing liner → Rep. gr.66. –  Remove front noise insulation -1- → Rep. gr.66.

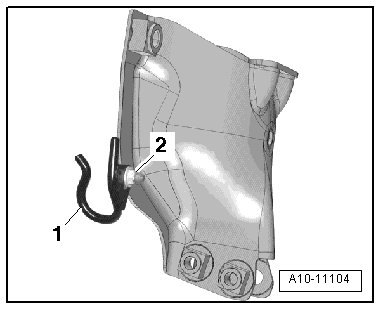

–  Remove nut -2- and move bracket -1- clear.

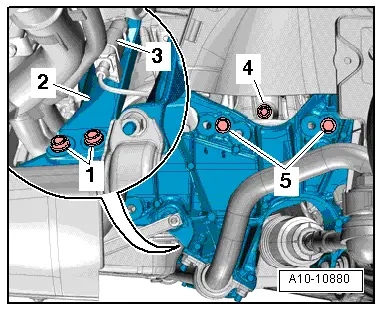

–  Move clear and unplug electrical connector -3- for electrohydraulic engine mounting solenoid valve. –  Remove bolts -1, 4, 5- for engine mounting. –  Detach bracket -2- and engine mounting. Installing Installation is carried out in the reverse order; note the following: l  Tightening torques → Chapter „Assembly mountings - exploded view“   Note Renew the bolts tightened with specified tightening angle. –  Install wheel housing liner and front noise insulation → Rep. gr.66. –  Install pressure differential sender -G505- → Rep. gr.23.
