Removing and installing engine mounting (left-side)   Note t  Renew engine mountings on both sides together. t  Also renew corresponding brackets. Special tools and workshop equipment required

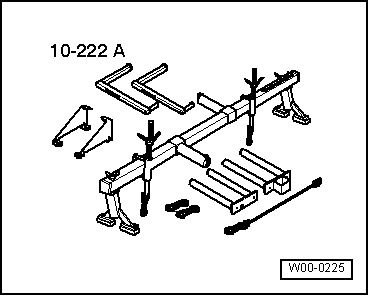

t  Support bracket -10 - 222 A-

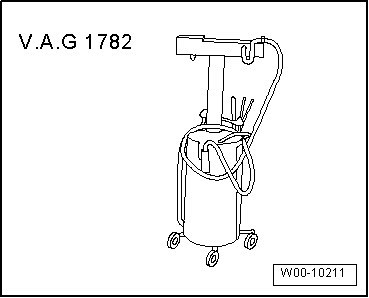

t  Used oil collection and extraction unit -V.A.G 1782-

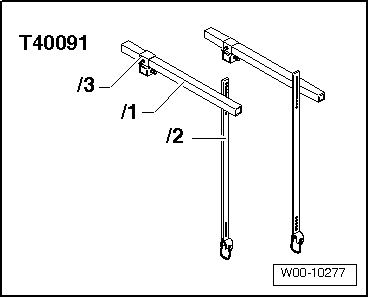

t  Engine support bracket (basic set) -T40091-

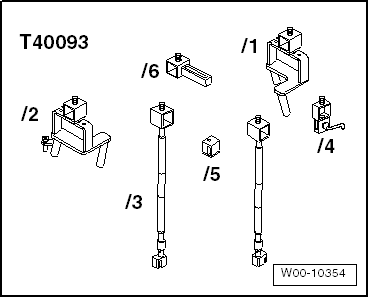

t  Engine support bracket (supplementary set) -T40093-

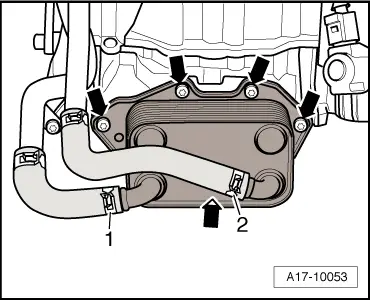

Removing –  Position used oil collection and extraction unit -V.A.G 1782- below engine. –  Remove bolts -arrows- and tie up oil cooler to one side with coolant hoses -1- and -2- attached. –  On vehicles with continued coolant circulation pump -V51-, remove -V51- → Chapter and oil cooler → Chapter.

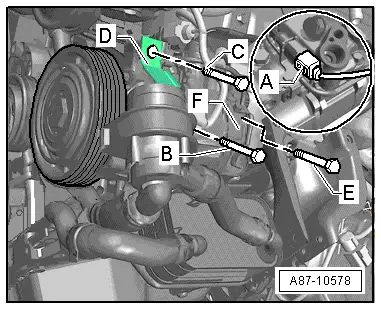

–  Remove air conditioner compressor → Rep. Gr.87.

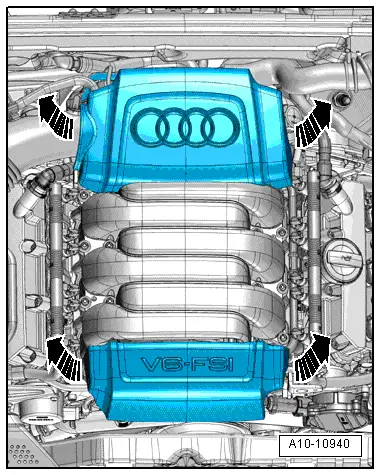

–  Pull off rear engine cover panel -top arrows-.

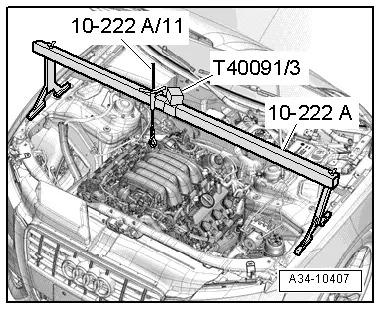

–  Set up support bracket -10 - 222 A- with connecting piece -T40091/3- on suspension turrets (left and right) as illustrated. –  Attach spindle -10 - 222 A /11- to engine lifting eye (right-side).

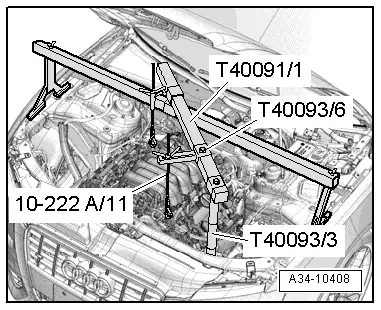

–  Attach further components of support bracket -10 - 222 A- as shown in illustration. Position support -T40093/3- onto flange of longitudinal member. –  Attach spindle -10 - 222 A /11- to engine lifting eye (left-side). –  Take up weight of engine with spindles.

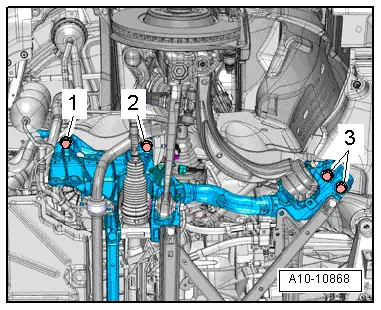

–  Remove bolt -2- for subframe (left-side).   Note Bolts -1- and -3- on left side and all bolts for subframe on right side remain fitted.

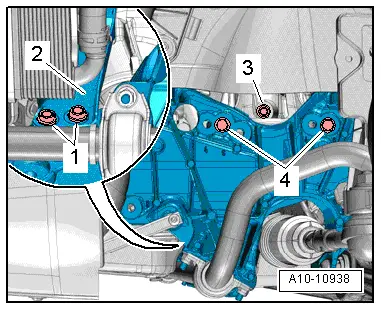

–  Remove bolts -1-, -3- and -4- for engine mounting (left-side). –  Move retaining plate -2- for engine mounting (left-side) clear to the side. –  Detach engine mounting (left-side). Installing l  Tightening torques → Chapter Installation is carried out in the reverse order; note the following:   Note Renew the bolts tightened with specified tightening angle. –  Secure subframe → Rep. Gr.40. –  Install oil cooler → Chapter. –  Install air conditioner compressor → Rep. Gr.87. –  Install continued coolant circulation pump -V51- → Chapter.
