Removing and installing engine mounting (right-side)   Note t  Renew engine mountings on both sides together. t  Also renew corresponding brackets. Special tools and workshop equipment required

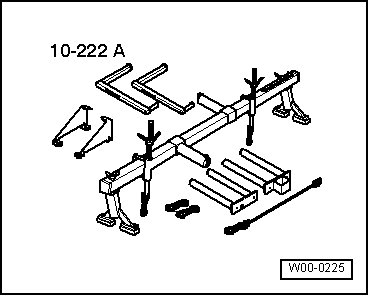

t  Support bracket -10 - 222 A-

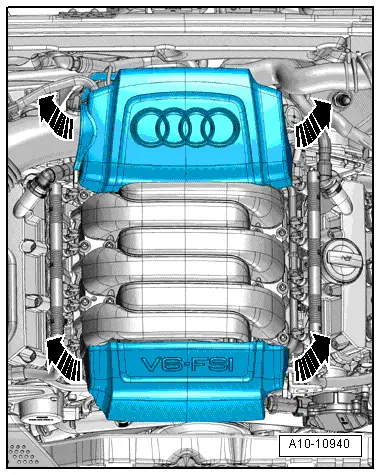

Removing –  Pull off rear engine cover panel -top arrows-.

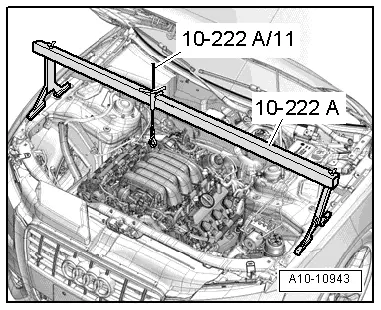

–  Set up support bracket -10 - 222 A- on suspension turrets (left and right) as illustrated. –  Attach spindle -10 - 222 A /11- to engine lifting eye (right-side) and apply slight tension.

–  Remove front right wheel. –  Remove front wheel housing liner (right-side) → Rep. Gr.66. –  Remove front noise insulation -1- → Rep. Gr.66.

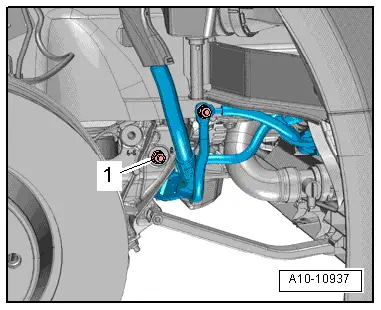

–  Unscrew nut -1- and detach bracket with electrical wiring from subframe.

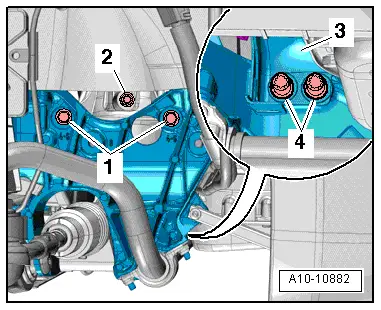

–  Remove bolts -1, 2, 4- and move clear retaining plate -3- for engine mounting (right-side).

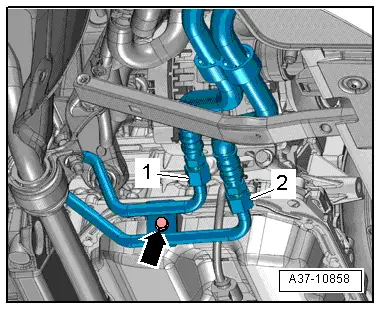

–  Vehicles with multitronic gearbox 0AW/automatic gearbox 0B6: remove bolt -arrow- at bracket for ATF pipes.

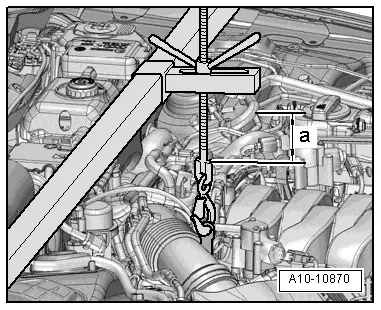

–  Using spindle -10 - 222 A /11-, raise engine through distance -a-. l  Distance -a- = approx. 20 mm. –  Detach engine mounting (right-side). Installing l  Tightening torques → Chapter Installation is carried out in the reverse order; note the following: –  Install wheel housing liner and noise insulation → Rep. Gr.66. –  Fit front wheel → Rep. Gr.44.
