Removing and installing radiator cowl - Audi A5
Removing and installing radiator cowl - Audi A5
Removing and installing radiator cowl - Audi A5
Used oil collection and extraction unit -V.A.G 1782- for vehicles with multitronic gearbox 0AW/automatic gearbox 0B6
Engine bung set -VAS 6122- for vehicles with multitronic gearbox 0AW/automatic gearbox 0B6
Removing
–
Remove front noise insulation
-1-
→ Rep. Gr.66
.
–

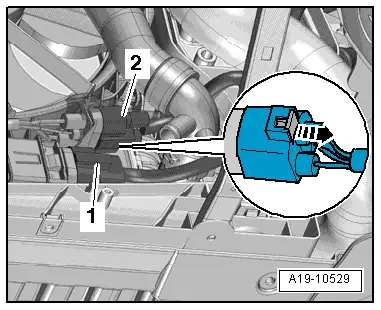

Unplug electrical connectors
-1-
and, if fitted,
-2-
for radiator fan (push retainer to the rear
-arrow-
and press down release catch).
Vehicles with multitronic gearbox 0AW/automatic gearbox 0B6:
–
Position used oil collection and extraction unit -V.A.G 1782- below connection point.
Note
Observe rules for cleanliness when working on gearbox
→ Rep. Gr.00
.
–

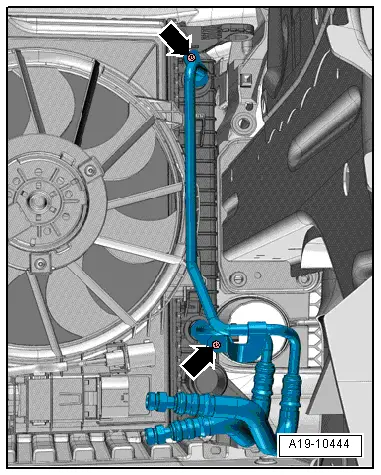

Unscrew bolts
-arrows-
and detach ATF pipes from radiator.
Note
Tie ATF pipes up onto longitudinal member to prevent fluid escaping.
–
Seal off open pipes/lines and connections with clean plugs from engine bung set -VAS 6122-.
All vehicles (continued):
–

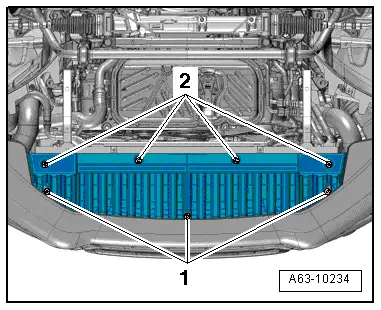

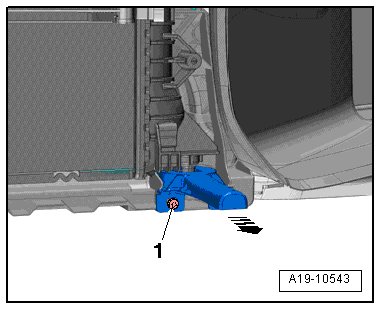

Loosen bolts
-1-
and
-2-
and detach end plate at bumper cover towards rear.
–
Remove bolts
-1-
on both sides.
Note
Disregard
-arrow-
.
–

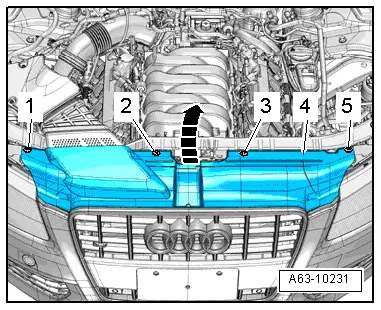

Remove bolts
-1, 2, 3, 5-
.
–
Lift cover
-4-
at lock carrier and detach from radiator grille.
–

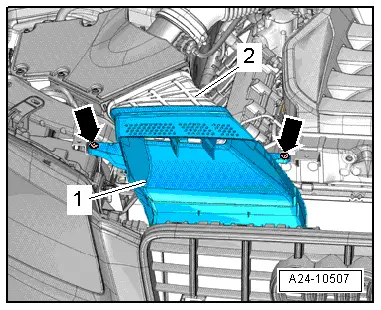

Remove bolts
-arrows-
.
–
Detach air duct
-1-
from intermediate flange
-2-
for air cleaner housing.
–

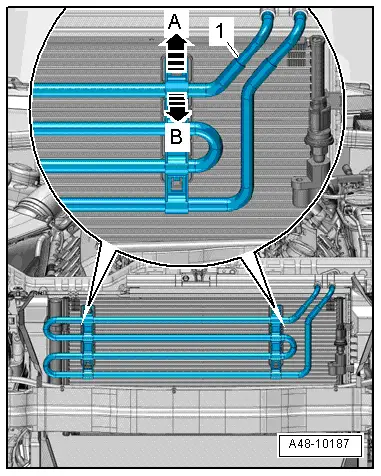

If fitted, release retaining clips
-arrow A-
and swivel power steering cooling pipe
-1-
to front
-arrow B-
.
–
Release catches
-arrows A-
and swivel air duct
-1-
on left and right to centre of vehicle
-arrow B-
.
–

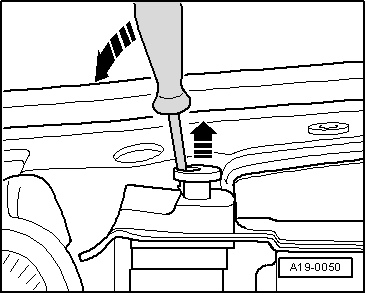

Release retaining pins for radiator on both sides and pull out upwards
-arrows-
.
–

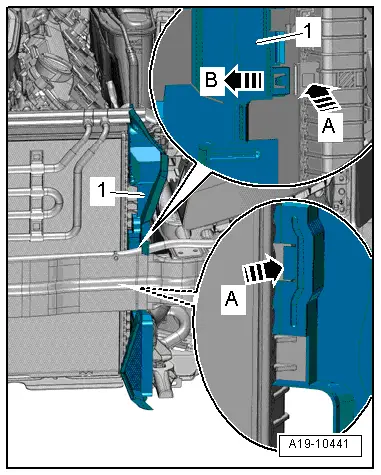

Pull right side of radiator towards the front
-arrow B-
, then press to the right
-arrow A-
and then pull left side towards the front
-arrow C-
.
–
Press locking tabs on left and right sides of radiator cowl
-arrow-
and at the same time lift radiator cowl off radiator.
Installing
l
Tightening torque
→ Chapter
.
Installation is carried out in the reverse order; note the following:
–
Attach air duct to intermediate flange for air cleaner housing
→ Rep. Gr.24
.
–
Install cover above lock carrier
→ Rep. Gr.63
.
–
Install end plate at bumper cover
→ Rep. Gr.63
.
–
Install front noise insulation
→ Rep. Gr.66
.
