A4 Mk3

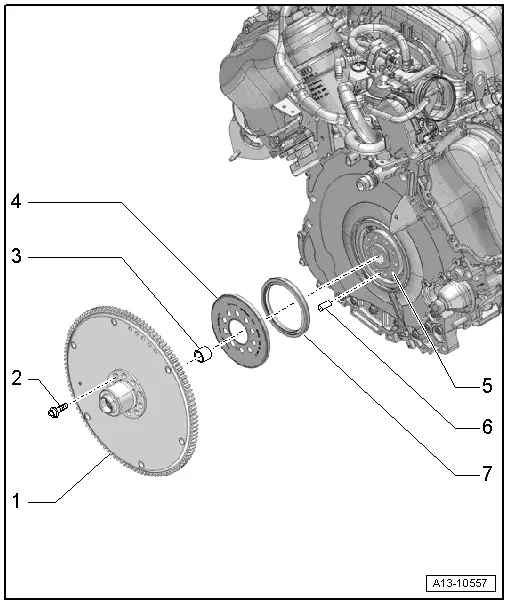

| Drive plate - exploded view |
| 1 - | Drive plate |
| q | With bearing flange |
| q | Check running surface on bearing flange and holes for clutch module for cracks and scoring. |
| q | Removing and installing → Chapter |
| 2 - | Bolt |
| q | Renew |
| q | 60 Nm + turn 90° further |
| 3 - | Needle bearing |
| q | Only for vehicles with manual gearbox/multitronic gearbox 0AW |
| q | Installation position: closed side towards engine |
| q | Removing and installing → Chapter |
| 4 - | Sender wheel |
| q | For engine speed sender -G28- |
| 5 - | Crankshaft |
| 6 - | Dowel pin |
| 7 - | Crankshaft oil seal (gearbox end) |
| q | Renewing → Chapter |
