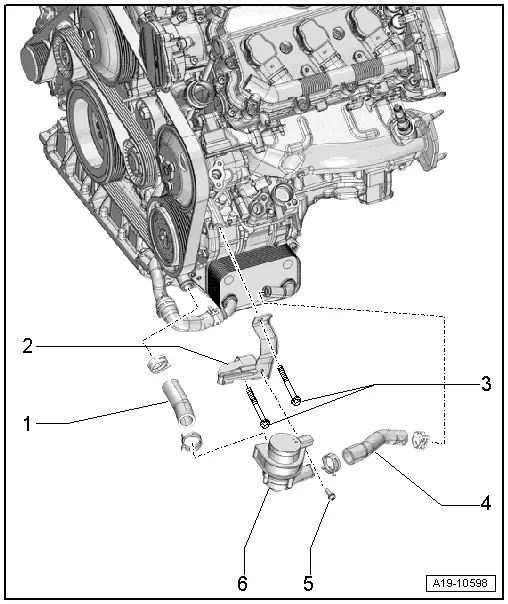

| Continued coolant circulation pump -V51- - exploded view |
| 1 - | Coolant hose |
| 2 - | Bracket |
| 3 - | Bolts |
| q | 9 Nm |
| 4 - | Coolant hose |
| 5 - | Bolt |
| q | 4 Nm |
| 6 - | Continued coolant circulation pump -V51- |
| q | Removing and installing → Chapter |
