Radiator and radiator fans > < Continued coolant circulation pumpV51 - exploded view

A4 Mk3

Removing and installing continued coolant circulation pumpV51
Removing and installing continued coolant circulation pump -V51-
Special tools and workshop equipment required

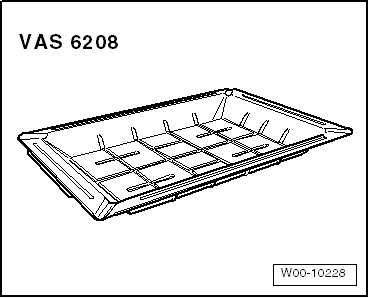

t  Drip tray for workshop hoist -VAS 6208-
  W00-10228

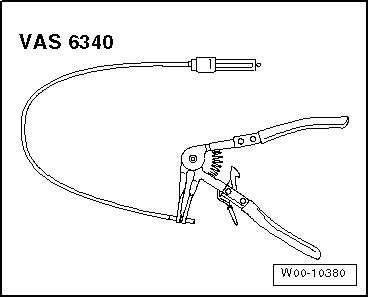

t  Hose clip pliers -VAS 6340-
  W00-10380
Removing
  WARNING
Hot steam/hot coolant can escape - risk of scalding.
t  The cooling system is under pressure when the engine is hot.
t  Cover filler cap on coolant expansion tank with a cloth and open carefully to dissipate pressure.

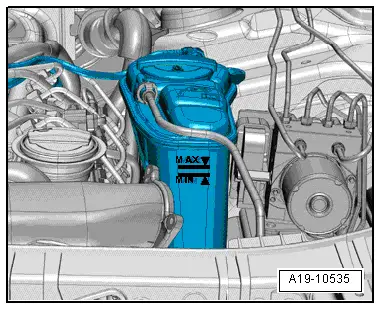

–  Open filler cap on coolant expansion tank.
  A19-10535
–  Remove front noise insulation -1- → Rep. gr.66.
  A10-11071
–  Unplug electrical connector -2- and remove bolt -1-.
–  Place drip tray for workshop hoist -VAS 6208- beneath engine.

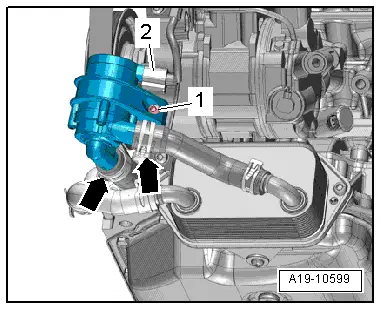

–  Release hose clips -arrows- and disconnect continued coolant circulation pump -V51- from coolant hoses.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Chapter „Continued coolant circulation pump -V51- - exploded view“
  Note
Secure all hose connections with the correct type of hose clips (same as original equipment) → Electronic parts catalogue.
–  Fill up with coolant → Anchor.
–  Install noise insulation → Rep. gr.50.
  A19-10599
