A4 Mk3
Oil filter housing, oil pressure switch - exploded view |
1 - | Bolt |
q | 13 Nm |

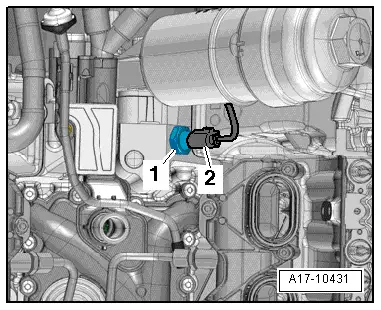

2 - | Oil pressure switch -F22- |
q | Opening/closing pressure 2.5 ... 3.2 bar |
q | With grey insulation |
q | Checking in Guided Fault Finding → Vehicle diagnostic tester |
q | Removing and installing → Chapter |
q | 20 Nm |
3 - | Seal |
q | Renew |
4 - | Flange nut |
q | 13 Nm |
5 - | Bolt |
q | 9 Nm |
6 - | Sleeve |
7 - | Rubber grommet |
8 - | Oil filter housing |
q | With filter bypass valve |
q | With oil retention valve |
q | The oil retention valve cannot be renewed |

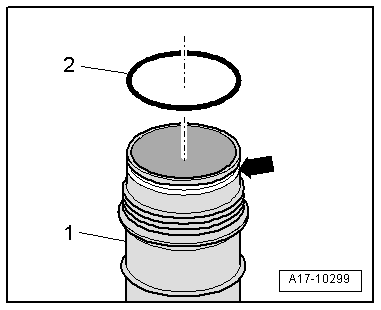

9 - | O-ring |
q | Renew |
q | Installing → Fig. |
10 - | Sealing cap |
q | 25 Nm |
11 - | Seal |
q | Renew |
q | Removing and installing → Fig. |

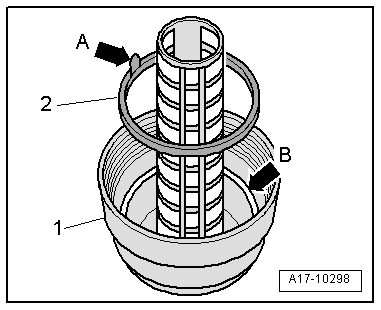

12 - | Oil filter element |
q | Removing and installing → Booklet811, → Booklet812 or → Booklet818 |
13 - | Threaded pin |
q | Tightening torque → Fig. |
14 - | Gasket |
q | Renew |
|
|
