A4 Mk3

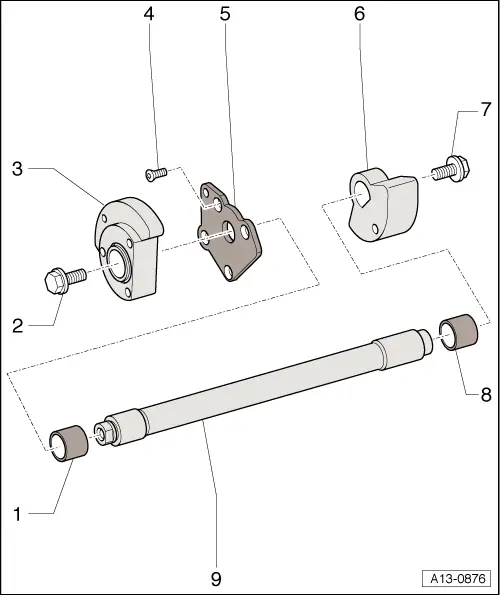

| Balance shaft - exploded view |
| 1 - | Sleeve bearing |
| 2 - | Bolt |
| q | 60 Nm |
| q | Counterhold with diesel injection pump locking pin -3359- when loosening and tightening |
| 3 - | Balance weight (gearbox end) |
| 4 - | Bolt |
| q | Apply locking fluid when installing; refer to → Electronic parts catalogue |
| q | 9 Nm |
| 5 - | Bearing plate |
| 6 - | Balance weight (pulley end) |
| 7 - | Bolt |
| q | 60 Nm |
| q | Counterhold with diesel injection pump locking pin -3359- when loosening and tightening |
| 8 - | Sleeve bearing |
| 9 - | Balance shaft |
| q | Removing and installing → Chapter |
