A4 Mk3
Power unit
6-cylinder TDI engine (3.0 ltr. 4-valve common rail - generation II), mechanics
Engine cylinder head, valve gear
Cylinder head
Renewing injector seals
Renewing injector seals
Renewing injector seals
Special tools and workshop equipment required
t
Tool set for FSI engines -T10133-
t

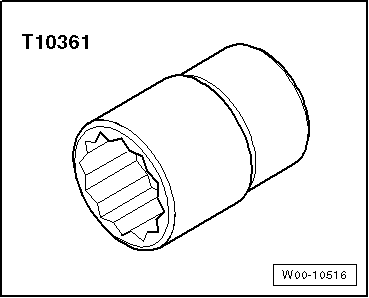

Socket, AF 24 -T10361-
t

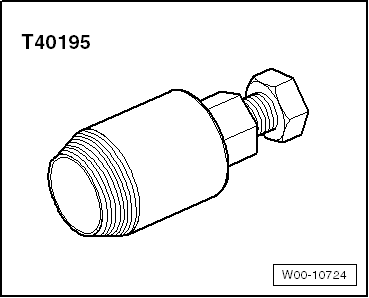

Oil seal extractor -T40195-
Procedure
–
Remove corresponding injector
→ Rep. gr.23
.
–
Screw oil seal extractor -T40195- into seal
-1-
.
–
Fit striker -T10133/3- with adapter -T10133/2- on oil seal extractor, as shown in illustration, and pull out seal upwards by tapping gently.
–

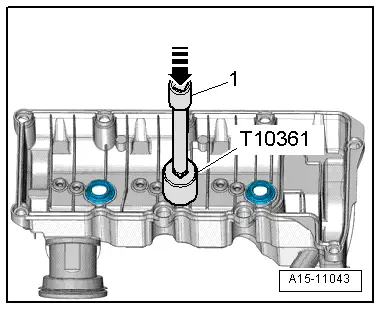

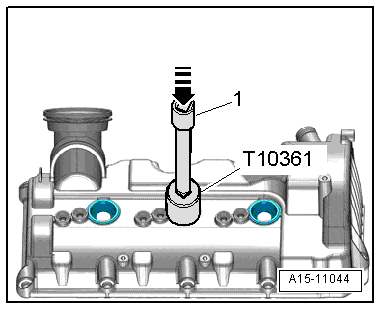

Drive in new injector seal as far as stop using socket, AF 24 -T10361- and short extension
-1-
.
