Removing and installing fuel pressure sender -G247-
Removing
–
Remove intake manifold (top section)
→ Chapter
.
–

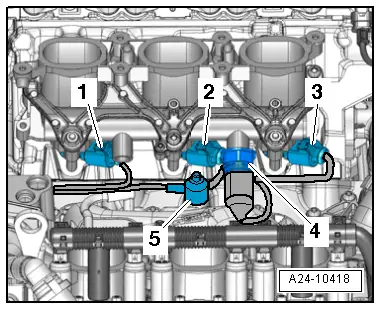

Unplug electrical connector at fuel pressure sender -G247-
-4-
.
–
Unscrew fuel pressure sender -G247-
-4-
.
Installing
Install in reverse order.
t
For tightening torque refer to exploded view of intake manifold (bottom section) with fuel rail
→ Chapter
–
Install intake manifold (top section)
→ Chapter
.
