A4 Mk3

Removing and installing intake manifold (bottom section) with fuel rail
Removing and installing intake manifold (bottom section) with fuel rail
Special tools and workshop equipment required

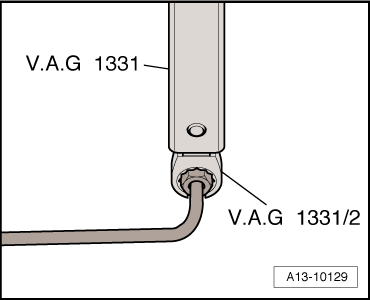

t  Torque wrench -V.A.G 1331-

t  Tool insert (open-end ring spanner, 17 mm) -V.A.G 1331/2-
Removing
  Note
The following description shows the removal and installation of the bottom section of the intake manifold (left-side). The procedure for the other side is more or less identical.
  WARNING
The fuel system operates at extremely high pressure. This can cause injury.
t  The fuel pressure in the high-pressure section of the injection system must be reduced to a residual pressure prior to opening the system → Chapter.
t  Wrap a clean cloth around the connection and carefully loosen the connection to allow the residual pressure to dissipate.
–  Remove intake manifold (top section) → Chapter.
  A13-10129

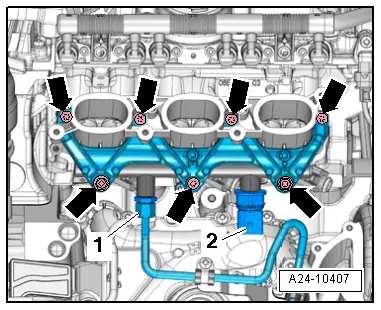

–  Unplug electrical connector at fuel pressure sender -G247--item 2-.
–  Remove union nut -1-.
–  Unscrew bolts and nuts -arrows- and detach intake manifold (bottom section) with fuel rail.
  Note
Seal intake ports on cylinder heads with clean cloths.
Installing
Installation is carried out in the reverse order; note the following:
  Note
t  If an injector has been pulled out of the cylinder head, the teflon ring seal must be renewed.
t  Renew gaskets and O-rings.
t  Lubricate O-rings of injectors lightly with clean engine oil.
–  Press intake manifold (bottom section) with fuel rail evenly onto injectors.
  A24-10407
–  Tighten bolts and nuts -arrows- for intake manifold (bottom section) in diagonal sequence and in stages.
t  Tightening torques: refer to → Chapter, → Fig..
–  Plug in electrical connector -2- at fuel pressure sender -G247-.
  A24-10407
–  Fit high-pressure pipe -1- on fuel rail → Chapter.
  Note
Check fuel system for leaks.
  A13-10129
