Removing and installing front left body acceleration senderG341 and front right body acceleration sender G342
Removing and installing front left body acceleration sender -G341- and front right body acceleration sender -G342-
Special tools and workshop equipment required

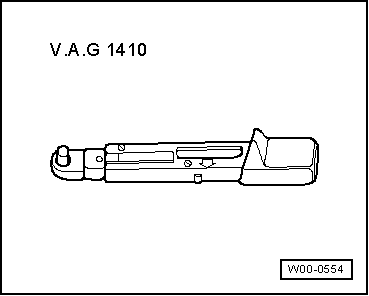

t  Torque wrench -V.A.G 1410-
Removing
–  Remove wheel.
–  Remove front wheel housing liner → Rep. gr.66.

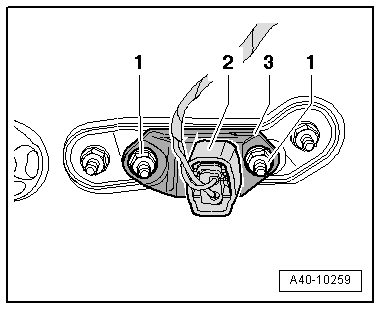

–  Release connector -2- and unplug.
  W00-0554
–  Unscrew nuts -1- and detach sender -3-.
Installing
Installation is carried out in the reverse sequence. Note the following points:
–  Note correct position of sender when installing.
  A40-10259
–  Install sender as shown in illustration.
–  Fit nuts -1- and tighten to 5 Nm.
  A40-10259
