Removing and installing rear body acceleration senderG343
Removing and installing rear body acceleration senderG343
Removing and installing rear body acceleration sender -G343-
Special tools and workshop equipment required
t

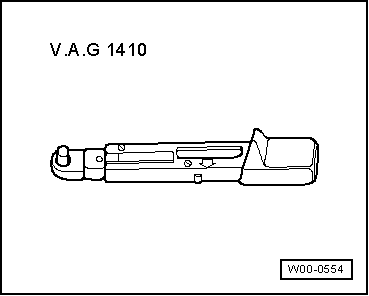

Torque wrench -V.A.G 1410-
Removing
–
Remove wheel.
–
Remove wheel housing liner (rear left)
→ Rep. gr.66
.
–

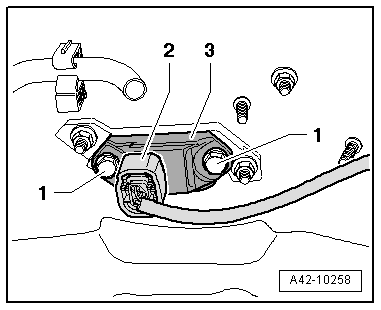

Release connector
-2-
and unplug.
–
Remove bolts
-1-
and detach sender
-3-
.
Installing
Installation is carried out in the reverse sequence. Note the following points:
–
Note correct position of sender when installing.
–
Install sender as shown in illustration.
–
Fit bolts
-1-
and tighten to 5 Nm.
