Connectors

Aerial amplifier 3 -R112- (radio CAN bus) 1 -  Connection AM/FM1 (yellow) to radio -R-  -  Connection FZV (remote locking) (grey) to convenience system central control unit -J393- 2 -  Not used 3 -  Connection for window aerials

Aerial amplifier 3 -R112- (MMI from week 45/08 onwards) 1 -  Connection AM/FM1 (yellow) to radio -R-  -  Connection FZV (remote locking) (grey) to convenience system central control unit -J393- 2 -  Connection TV3 to TV tuner -R78- 3 -  Connection for window aerials

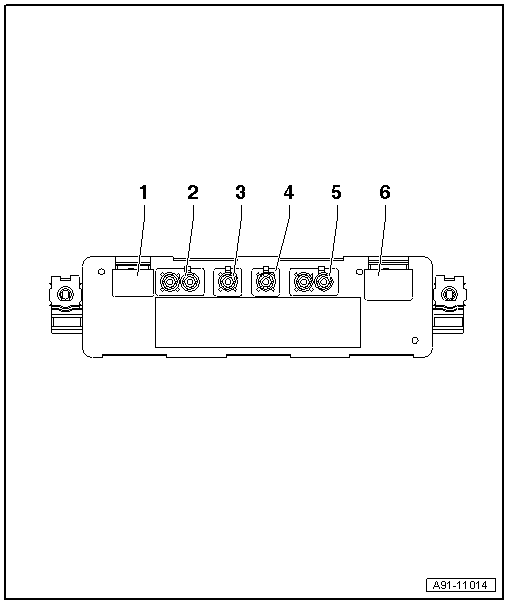

Aerial amplifier 3 -R112- (MMI up to week 44/08)

1 -	Connection for window aerials

2 -	Connection FM2/FM3 (yellow) from aerial amplifier -R24-/aerial amplifier 4 -R113-

3 -	Connection TV1 (green) to TV tuner -R78-

4 -	Connection FZV (remote locking) (grey) to convenience system central control unit -J393-

5 -	Connection HF/ZF (high frequency/intermediate frequency), white, to radio -R-

6 -	Connection for window aerials

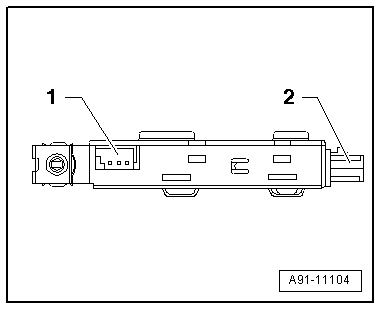

Aerial amplifier 2 -R111- 1 -  Connection for window aerials 2 -  Connection DAB (black) to radio -R- / digital radio -R147- (Europe)  -  Connection VICS (black) to navigation system with CD drive control unit -J401- (Japan up to week 44/08)

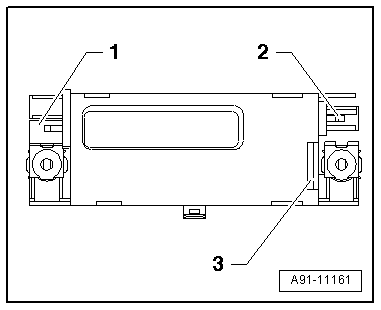

Aerial amplifier -R24- 1 -  Connection for window aerials 2 -  Connection FM2 (white) to radio -R- (CAN radio)  -  Connection FM2/TV2 (purple) to aerial amplifier 3 -R112-/TV tuner -R78- (MMI up to week 44/08)  -  Connection FM2/TV2 (white/purple) to radio -R-/TV tuner -R78- (MMI from week 45/08 onwards)

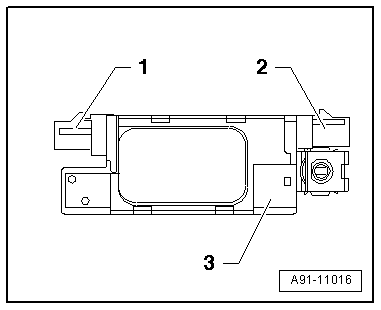

Aerial amplifier 4 -R113- (MMI up to week 44/08) 1 -  Connection FM3 (purple) to aerial amplifier 3 -R112- 2 -  Connection TV3 (green) to TV tuner -R78- 3 -  Connection for window aerials

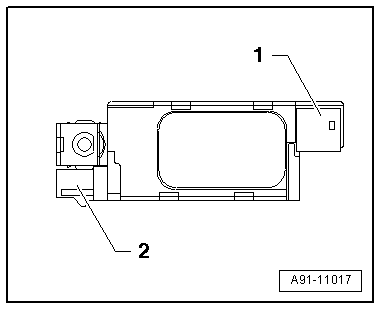

Aerial amplifier 4 -R113- (MMI from week 45/08 onwards) 1 -  Not used 2 -  Connection TV1 (green) to TV tuner -R78- 3 -  Connection for window aerials
