Removing and installing aerial amplifier 2 -R111-
Aerial amplifier 2 -R111- is located at D-pillar (right).
–
Switch off all electrical equipment.
–
Remove ignition key.
Removing
–
Remove D-pillar trim
→ General body repairs, interior; Rep. gr.70
.
–

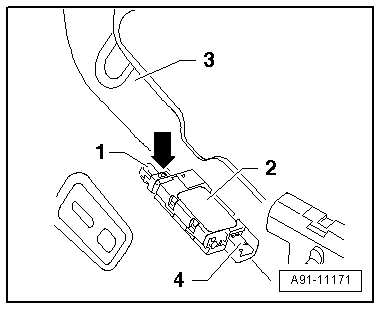

Release and unplug connectors
-1-
and
-4-
at aerial amplifier 2 -R111-
-2-
.
–
Unscrew bolt
-arrow-
and detach aerial amplifier 2 -R111-
-2-
from D-pillar
-3-
.
Installing
–
Install in reverse sequence of removal.
Tightening torques
→ Chapter
