A4 Mk3

Removing and installing aerial amplifierR24
Removing and installing aerial amplifier -R24-
Aerial amplifier -R24- is located on rear lid (top).
–  Switch off all electrical equipment.
–  Remove ignition key.
Removing
–  Remove rear lid trim → General body repairs, interior; Rep. gr.70.

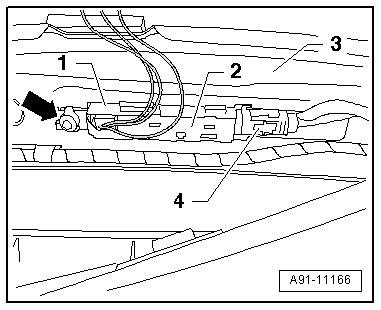

–  Release and unplug connectors -1- and -4- at aerial amplifier -R24--2-.
–  Unscrew bolt -arrow- and detach aerial amplifier -R24--2- from rear lid -3-.
Installing
–  Install in reverse sequence of removal.
Tightening torques → Chapter
  A91-11166
