A4 Mk3

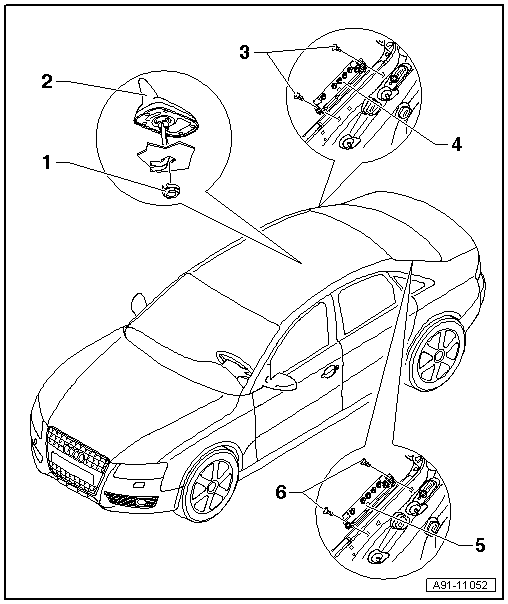

Overview |
1 - | Nut |
q | 6 Nm |
2 - | Radio, telephone and navigation system aerial -R52- |
q | Removing and installing → Chapter |
3 - | Bolt |
q | 2 Nm |
4 - | Aerial amplifier 2 -R111- |
q | Connectors (up to week 44/08) → Anchor |
q | Connectors (from week 45/08 onwards) → Anchor |
q | Removing and installing → Chapter |
5 - | Aerial amplifier 3 -R112- |
q | Connectors (CAN) → Anchor |
q | Connectors (MMI up to week 44/08) → Anchor |
q | Connectors (MMI from week 45/08 onwards) → Anchor |
q | Removing and installing → Chapter |
6 - | Bolt |
q | 2 Nm |
