Connectors on CD changerR41 (MMI)

Connectors on CD changer -R41- (MMI)

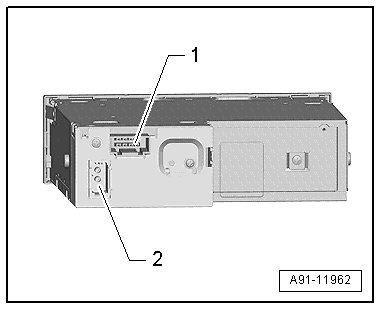

CD changer -R41-

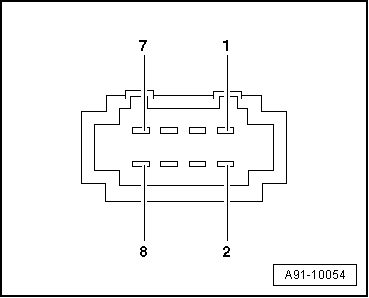

1 -	Multi-pin connector, 8-pin (T8aa)

2 -

MOST bus

Note

Contacts which are not listed are not used.

1 - Multi-pin connector, 8-pin (T8aa)

1 -	Terminal 31

2 -	Terminal 30

4 -	Terminal 31 (MMI basic only)

5 -	Open circuit diagnostic lead

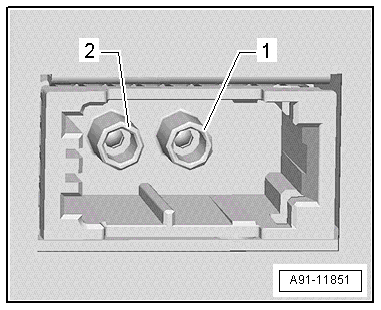

2 - MOST bus

1 -

Input

2 -

Output
