A4 Mk3

Removing and installing CD changerR41 (up to week 44/08)
Removing and installing CD changer -R41- (up to week 44/08)
Special tools and workshop equipment required

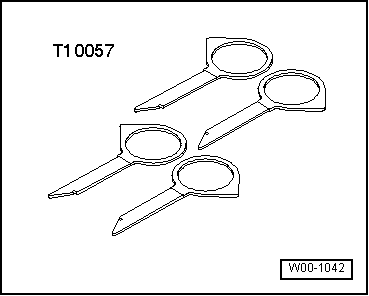

t  Radio release tool -T10057-
  W00-1042

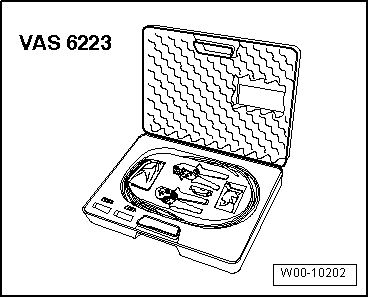

t  Fibre-optic conductor repair set -VAS 6223-
t  Protective cap for cable connector -VAS 6223/9-
–  When renewing control unit, select „Replacement“ function for appropriate control unit in „Guided Fault Finding“.
To do so, use → Vehicle diagnostic tester.
–  Switch off all electrical equipment.
–  Remove ignition key.
Removing
  W00-10202

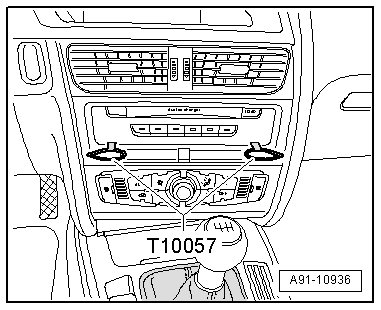

–  Insert two radio release tools -T10057- into release slots on CD changer -R41- until they engage. Pointed ends of tool grips must face outwards.
–  Pull CD changer -R41- out of mounting frame.
–  Release and unplug all connectors on CD changer -R41-.
  A91-10936

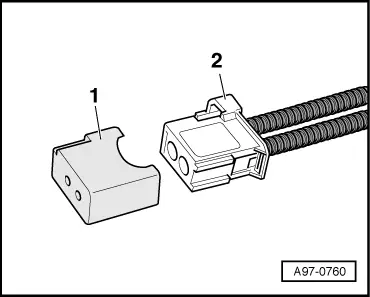

–  Fit protective cap for cable connector -VAS 6223/9--1- onto MOST bus connector -2-.
–  Press release tabs on CD changer -R41- and remove radio release tools -T10057-.
–  Unclip switches from trim panel on CD changer -R41-.
Installing
–  Plug in all connectors.
–  Slide CD changer -R41- into mounting frame until it engages.
Exploded view → Chapter
  A97-0760
