A4 Mk3

Removing and installing control unit for front display and information control panelJ523 (up to week 44/08)
Removing and installing control unit for front display and information control panel -J523- (up to week 44/08)
The control unit for front display and information control panel -J523- is located behind dash panel.
Special tools and workshop equipment required

t  Protective cap for cable connector -VAS 6223/9-
–  Switch off all electrical equipment.
–  Remove ignition key.
–  When renewing control unit, select „Replacement“ function for appropriate control unit in „Guided Fault Finding“.
To do so, use → Vehicle diagnostic tester.
Removing
–  Remove air conditioner operating unit → Air conditioning system; Rep. gr.87.
–  Remove CD changer -R41- from dash panel → Chapter.
  W00-10202

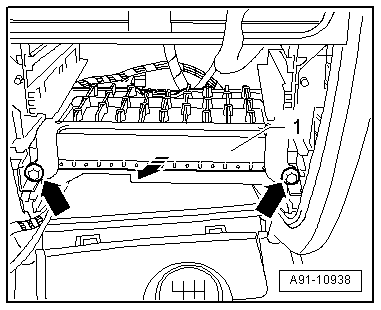

–  Remove bolts -arrows- and pull control unit for front display and information control panel -J523--1- out of mounting frame in direction of -arrow-.
  A91-10938

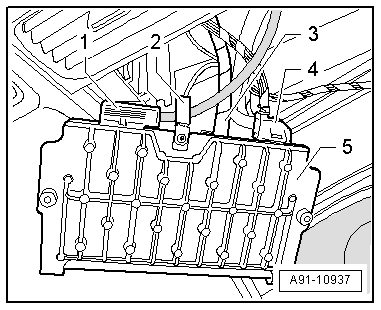

–  Release and unplug connector to MOST bus -3-.
  A91-10937
–  Fit protective cap for cable connector -VAS 6223/9--1- onto MOST bus connector -2-.
  A97-0760
–  Unscrew earth connection -2-.
–  Release and unplug connectors -1- and -4- on control unit for front display and information control panel -J523--5-.
–  Turn around control unit for front display and information control panel -J523- together with bracket -5-.
  A91-10937
–  Remove bolts -3- and detach control unit for front display and information control panel -J523--2- from bracket -1-.
Installing
–  Install in reverse sequence of removal.
Tightening torques → Chapter
  A91-11021
